1N50-KW - N-CHANNEL POWER MOSFET

1N50-KW Description

UNISONIC TECHNOLOGIES CO., LTD 1N50-KW Preliminary 1A, 500V N-CHANNEL POWER MOSFET * .
The UTC 1N50-KW is a high voltage MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state re.

1N50-KW Features

* RDS(ON) < 10Ω @ VGS=10V, ID=0.5A
* Fast switching capability
* Avalanche energy specified
* Improved dv/dt capability, high ruggedness
* SYMBOL Power MOSFET
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free 1N50L-T92-B 1N50G-T92-B 1N50L-T92-K 1N50G-T92-

1N50-KW Applications

* in power supplies, PWM motor controls, high efficient DC to DC converters and bridge circuits.

📥 Download Datasheet

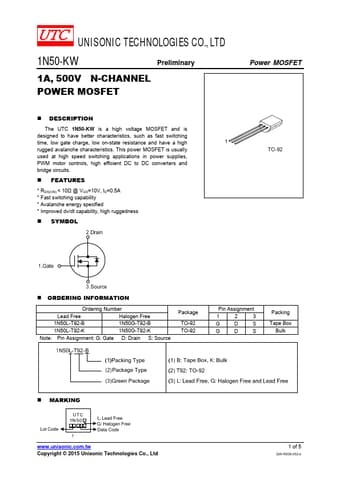

Preview of 1N50-KW PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N50-KW
Manufacturer
Unisonic Technologies
File Size
227.83 KB
Datasheet
1N50-KW-UnisonicTechnologies.pdf
Description
N-CHANNEL POWER MOSFET
