2W08G

GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

2W08G Features

* 1.0 (25.4) MIN. 0.032 (0.81) 0.028 (0.71) 0.060 (1.52) 0.020 (0.51)

* Plastic package has Underwriters Laboratory Flammability Recognition 94V-0

* This series is UL listed under the Recognized Component Index, file number E54214

* Glass passivated chip junctions

2W08G Datasheet (123.49 KB)

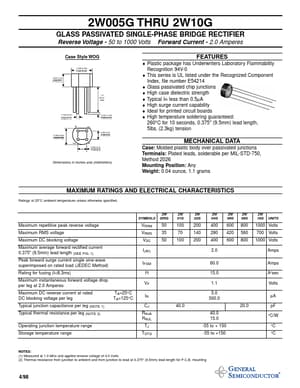

Preview of 2W08G PDF

Datasheet Details

Part number:

2W08G

Manufacturer:

General Semiconductor

File Size:

123.49 KB

Description:

Glass passivated single-phase bridge rectifier.
2W005G THRU 2W10G GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER Reverse Voltage - 50 to 1000 Volts Case Style WOG 0.388 (9.86) 0.348 (8.84) 0.220 (5..
