2W08GN Single Phase Glass Passivated Bridge Rectifier

Max Recurrent Peak Reverse Voltage 2W005G N 50 VRMS Max RMS Voltage 35 VDC IF(AV) IFSM TJ,TSTG Max DC Blocking Voltage Max Average Forward Rectified Current Peak.

2W08GN Features

* Glass Passivated Chip Junction

* Low Forward Voltage Drop

* High Current Capability

* This Series is UL Recognized Under Component Index, File Number E197450

* Ideal for Printed Circuit Boards

* RoHS and REACH Compliance Mechanical Data

2W005GN-MEISEMI.pdf

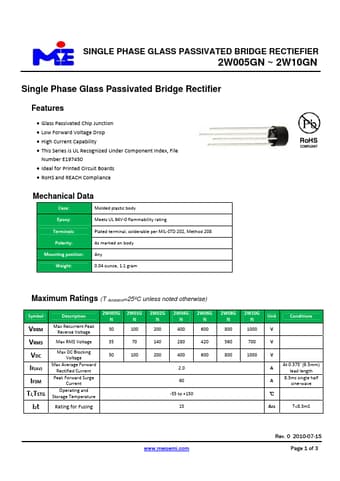

2W08GN Datasheet Preview — This datasheet PDF includes multiple part numbers: 2W08GN, 2W005GN. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2W08GN, 2W005GN

Manufacturer:

MEI SEMI

File Size:

161.97 KB

Description:

Single phase glass passivated bridge rectifier.

Note:

This datasheet PDF includes multiple part numbers: 2W08GN, 2W005GN.
Please refer to the document for exact specifications by model.
