MBRF1545CT Datasheet - General Semiconductor

MBRF1545CT, SCHOTTKY ISOLATED PLASTIC RECTIFIER

NEW PRODUCT NEW PRODUCT NEW PRODUCT MBRF1535CT THRU MBRF1560CT SCHOTTKY ISOLATED PLASTIC RECTIFIER Reverse Voltage - 35 to 60 Volts ITO-220AB 0.405.

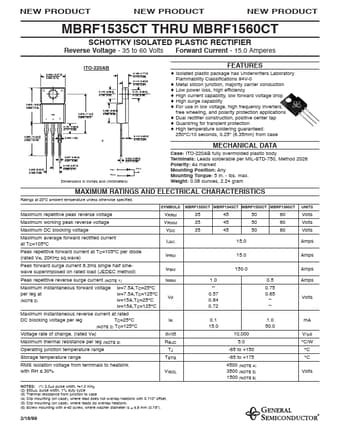

datasheet Preview Page 1 from Datasheet4u.com

MBRF1545CT_GeneralSemiconductor.pdf

MBRF1545CT Datasheet Preview — Preview of MBRF1545CT PDF

Datasheet Details

Part number:

MBRF1545CT

Manufacturer:

General Semiconductor

File Size:

118.27 KB

Description:

SCHOTTKY ISOLATED PLASTIC RECTIFIER

Features

* ¨ Isolated plastic package has Underwriters Laboratory Flammability Classifications 94V-0 ¨ Metal silicon junction, majority carrier conduction ¨ Low power loss, high efficiency ¨ High current capability, low forward voltage drop ¨ High surge capability ¨ For use in low voltage, high frequency inver

Applications

* ¨ Dual rectifier construction, positive center tap ¨ Guardring for transient protection ¨ High temperature soldering guaranteed: 250¡C/10 seconds, 0.25" (6.35mm) from case 0.600 (15.5) 0.580 (14.5) PIN 1 2 3 0.676 (17.2) 0.646 (16.4) 0.350 (8.89) 0.330 (8.38) 0.191 (4.85) 0.171 (4.35) 0.560 (14.
