MBRF1550CT SCHOTTKY ISOLATED PLASTIC RECTIFIER

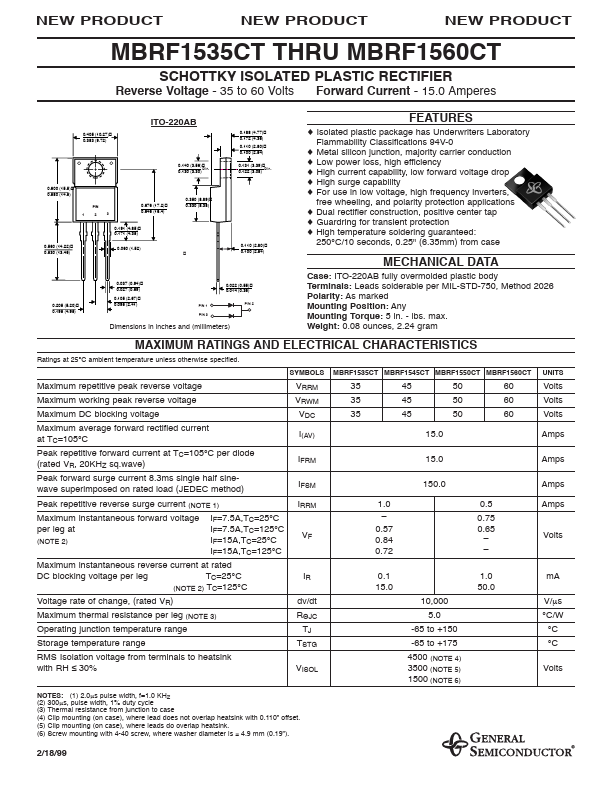

📥 Download Datasheet  Datasheet Preview Page 1

Description

NEW PRODUCT NEW PRODUCT NEW PRODUCT MBRF1535CT THRU MBRF1560CT SCHOTTKY ISOLATED PLASTIC RECTIFIER Reverse Voltage - 35 to 60 Volts ITO-220AB 0.405.

📥 Download Datasheet

Preview of MBRF1550CT PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
MBRF1550CT
Manufacturer
General Semiconductor
File Size
118.27 KB
Datasheet
MBRF1550CT_GeneralSemiconductor.pdf
Description
SCHOTTKY ISOLATED PLASTIC RECTIFIER

Features

* ¨ Isolated plastic package has Underwriters Laboratory Flammability Classifications 94V-0 ¨ Metal silicon junction, majority carrier conduction ¨ Low power loss, high efficiency ¨ High current capability, low forward voltage drop ¨ High surge capability ¨ For use in low voltage, high frequency inver

Applications

* ¨ Dual rectifier construction, positive center tap ¨ Guardring for transient protection ¨ High temperature soldering guaranteed: 250¡C/10 seconds, 0.25" (6.35mm) from case 0.600 (15.5) 0.580 (14.5) PIN 1 2 3 0.676 (17.2) 0.646 (16.4) 0.350 (8.89) 0.330 (8.38) 0.191 (4.85) 0.171 (4.35) 0.560 (14.
