SBLF1030CT Datasheet - General Semiconductor

SBLF1030CT - SCHOTTKY ISOLATED PLASTIC RECTIFIER

NEW PRODUCT NEW PRODUCT NEW PRODUCT SBLF1030CT AND SBLF1040CT SCHOTTKY ISOLATED PLASTIC RECTIFIER Reverse Voltage - 30 and 40 Volts Forward Current - 10.0 Amperes ITO-220AB 0.405 (10.27) 0.383 (9.72) 0.140 (3.56) DIA.

0.130 (3.30) 0.600 (15.5) 0.580 (14.5) 0.560 (14.22) 0.530 (13.46) PIN 123 0.676 (17.2) 0.646 (16.4) 0.191 (4.85) 0.171 (4.35) 0.060 (1.52) 0.350 (8.89) 0.330 (8.38) 0.188 (4.77) 0.172 (4.36) 0.110 (2.80) 0.100 (2.54) 0.131 (3.39) DIA.

0.122 (3.08) 0.110 (2.80) 0.100 (

SBLF1030CT Features

* ¨ Isolated plastic package has Underwriters Laboratory Flammability Classifications 94V-0 ¨ Metal silicon junction, majority carrier conduction ¨ Low power loss,high efficiency ¨ High current capability, low forward voltage drop ¨ High surge capacity ¨ For use in low voltage, high frequency inverter

SBLF1030CT-GeneralSemiconductor.pdf

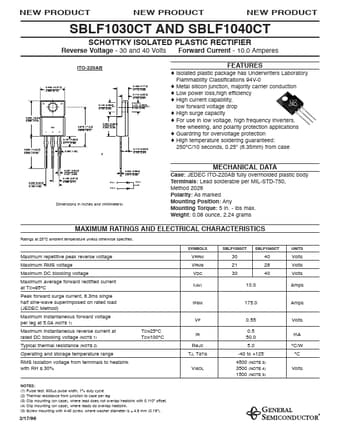

Preview of SBLF1030CT PDF
SBLF1030CT Datasheet Preview Page 2

Datasheet Details

Part number:

SBLF1030CT

Manufacturer:

General Semiconductor

File Size:

111.75 KB

Description:

Schottky isolated plastic rectifier.
