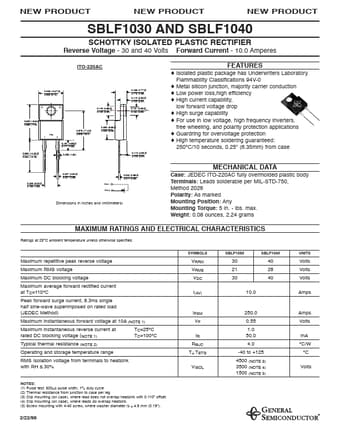

SBLF1040 SCHOTTKY ISOLATED PLASTIC RECTIFIER

NEW PRODUCT NEW PRODUCT NEW PRODUCT SBLF1030 AND SBLF1040 SCHOTTKY ISOLATED PLASTIC RECTIFIER Reverse Voltage - 30 and 40 Volts Forward Current - 10.0 Amperes ITO-220AC 0.405 (10.27) 0.383 (9.72) 0.140 (3.56) 0.130 (3.30) DIA. 0.600 (15.5) 0.580 (14.5) 0.560 (14.22) 0.530 (13.46) PIN 12 0.676 (17.2) 0.646 (16.4) 0.191 (4.85) 0.171 (4.35) 0.060 (1.52) 0.350 (8.89) 0.330 (8.38) 0.188 (4.77) 0.172 (4.36) 0.110 (2.80) 0.100 (2.54) 0.131 (3.39) DIA. 0.122 (3.08) 0.110 (2.80) 0.100 (2.54).

SBLF1040 Features

* ¨ Isolated plastic package has Underwriters Laboratory Flammability Classifications 94V-0 ¨ Metal silicon junction, majority carrier conduction ¨ Low power loss,high efficiency ¨ High current capability, low forward voltage drop ¨ High surge capability ¨ For use in low voltage, high frequency invert

SBLF1030-GeneralSemiconductor.pdf

SBLF1040 Datasheet Preview — This datasheet PDF includes multiple part numbers: SBLF1040, SBLF1030. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBLF1040, SBLF1030

Manufacturer:

General Semiconductor

File Size:

108.94 KB

Description:

Schottky isolated plastic rectifier.

Note:

This datasheet PDF includes multiple part numbers: SBLF1040, SBLF1030.
Please refer to the document for exact specifications by model.
