SBL3040PT - Dual Schottky Rectifier

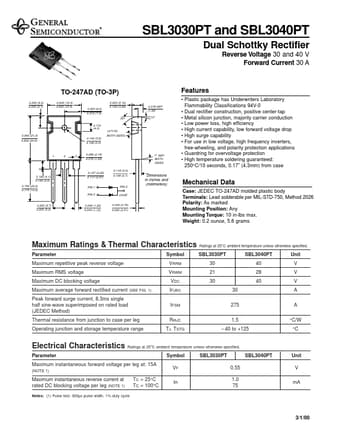

SBL3030PT and SBL3040PT Dual Schottky Rectifier Reverse Voltage 30 and 40 V Forward Current 30 A 0.245 (6.2) 0.225 (5.7) 0.840 (21.3) 0.820 (20.8) TO-247AD (TO-3P) 0.645 (16.4) 0.625 (15.9) 0.323 (8.2) 0.313 (7.9) 0.203 (5.16) 0.193 (4.90) 30 0.170 (4.3) 0.142 (3.6) 0.138 (3.5) 10 TYP.
BOTH SIDES 1 2 3 0.086 (2.18) 0.076 (1.93) 0.160 (4.1) 0.140 (3.5) 0.795 (20.2) 0.775 (19.6) 0.225 (5.7) 0.205 (5.2) 0.127 (3.22) 0.117 (2.97) PIN 1 PIN 3 0.118 (3.0) 0.108 (2.7) PIN 2 CASE 0.048 (1.22
SBL3040PT Features
* Plastic package has Underwriters Laboratory Flammability Classifications 94V-0
* Dual rectifier construction, positive center-tap
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency
* High current capability, low forward v
