GS1679

Cable Driver

GS1679 Features

* an adjustable output swing using an external bias resistor. The single-ended output swing is adjustable from 600mVpp to 1200mVpp. The GS1679 can be powered from either a 3.3V or a 2.5V supply. Power consumption is typically 110mW using a 2.5V power supply. The GS1679 is forward footprint-compatible

GS1679 General Description

3 2. Electrical Characteristics 4 2.1 Absolute Maximum Ratings 4 2.2 DC Electrical Characteristics 5 2.3 AC Electrical Characteristics 6 3. Detailed Description7 3.1 Serial Data Input 7 3.2 Serial Digital Output 7 3.2.1 Slew Rate Selection (Rise/Fall Time Requirement)7 3.3 Output Disable 8 3.4 Outp.

GS1679 Datasheet (352.08 KB)

Preview of GS1679 PDF

Datasheet Details

Part number:

GS1679

Manufacturer:

Gennum

File Size:

352.08 KB

Description:

Cable driver.

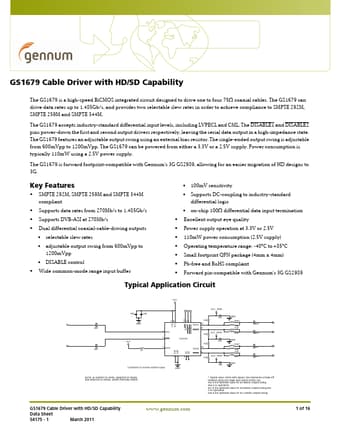

GS1679 Cable Driver with HD/SD Capability The GS1679 is a high-speed BiCMOS integrated circuit designed to drive one to four 75Ω coaxial cables. The .
