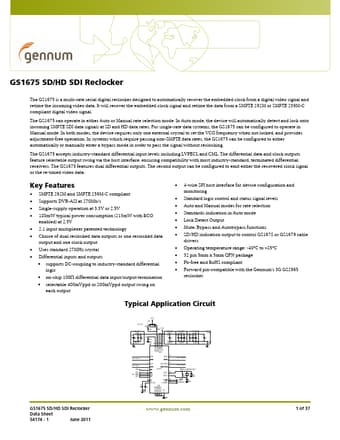

Preview of GS1675 PDF
GS1675 Datasheet Preview Page 2 GS1675 Datasheet Preview Page 3

Datasheet Details

Part number:

GS1675

Manufacturer:

GENNUM

File Size:

665.95 KB

Description:

Sd/hd sdi reclocker.

GS1675, SD/HD SDI Reclocker

5 1.3 Default Start-up Settings 7 2.

Electrical Characteristics 8 2.1 Absolute Maximum Ratings 8 2.2 DC Electrical Characteristics 8 2.3 AC Electrical Characteristics 9 3.

Functional Description 11 3.1 Serial Data Input 11 3.2 Modes of Operation 11 3.3 2:1 Input Mux 11 3.4 Crystal Buffer 12 3.

GS1675 SD/HD SDI Reclocker The GS1675 is a multi-rate serial digital reclocker designed to automatically recover the embedded clock from a digital video signal and retime the incoming video data.

It will recover the embedded clock signal and retime the data from a SMPTE 292M or SMPTE 259M-C compliant digital video signal.

The GS1675 can operate in either Auto or Manual rate selection mode.

In Auto mode, the device will automatically detect and lock onto incoming SMPTE SDI data signals at SD and

GS1675 Features

* dual differential outputs. The second output can be configured to emit either the recovered clock signal or the re-timed video data. Key Features

* SMPTE 292M and SMPTE 259M-C compliant

* Supports DVB-ASI at 270Mb/s

* Single-supply operation at 3.3V or 2.5V

* 180mW t
