GS1661A - HD/SD SDI Receiver

Product Overview

Semtech

📥 Download Datasheet

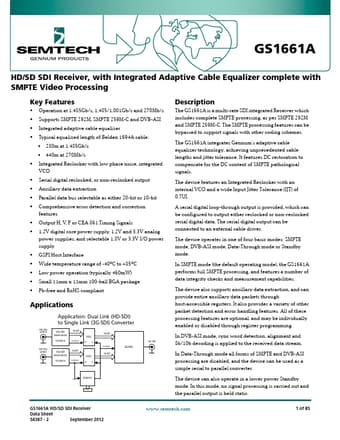

GS1661A HD/SD SDI Receiver by Semtech - Datasheet Preview — Datasheet preview – GS1661A

Datasheet Details

Part number	GS1661A
Manufacturer	Semtech
File Size	1.91 MB
Description	HD/SD SDI Receiver
Datasheet	GS1661A Datasheet
Additional preview pages of the GS1661A datasheet.

Product details

Description

The GS1661A is a multi-rate SDI integrated Receiver which includes complete SMPTE processing, as per SMPTE 292M and SMPTE 259M-C.

Features

Operation at 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s.
Supports SMPTE 292M, SMPTE 259M-C and DVB-ASI.
Integrated adaptive cable equalizer.
Typical equalized length of Belden 1694A cable:.
230m at 1.485Gb/s.
440m at 270Mb/s.
Integrated Reclocker with low phase noise, integrated VCO.
Serial digital reclocked, or non-reclocked output.
Ancillary data extraction.
Parallel data bus selectable as either 20-bit or 10-bit.
