GS1662

HD/SD-SDI Serializer

GS1662 Features

* Operation at 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s

* Supports SMPTE 292, SMPTE 259M-C and DVB-ASI

* Integrated Cable Driver

* Integrated, low-noise VCO

* Integrated ClockCleaner™

* Ancillary data insertion

* Parallel data bus selectable as e

GS1662 General Description

The GS1662 is a complete SDI Transmitter, generating a SMPTE 292, SMPTE 259M-C or DVB-ASI compliant Serial Digital Output signal. The integrated ClockCleaner™ allows the device to accept parallel clocks with greater than 300ps input jitter and still provide a SMPTE compliant serial digital output. .

GS1662 Datasheet (919.22 KB)

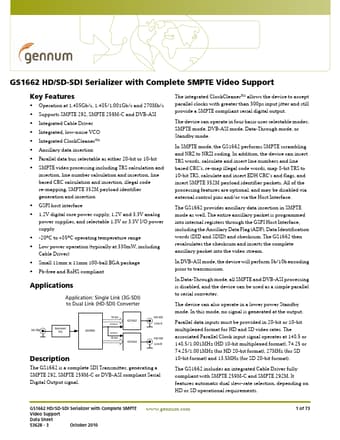

Preview of GS1662 PDF

Datasheet Details

Part number:

GS1662

Manufacturer:

GENNUM

File Size:

919.22 KB

Description:

Hd/sd-sdi serializer.
