G1412 Datasheet - Global Mixed-mode Technology

G1412 Ground-Reference Popless Stereo Headphone Driver

The G1412 stereo headphone driver is designed for portable equipment where board space is limited. The G1412 uses the dual external power supplies PVDD/NVDD to produce a ground-reference output, eliminating the need for large DC-blocking capacitors, saving cost, board space, and component height. Th.

G1412 Features

* 7mA Quiescent Current.

* Ground-Referenced Outputs Eliminate DC-Bias Voltages on Headphone Ground Pin

* Popless Function Embedded

* 70mW Per Channel into 16Ω loads

* Low Distortion

* Large Output Voltage Swing.

* ±1.8V to ±3.6V Dual Power Ope

G1412-GlobalMixedmodeTechnology.pdf

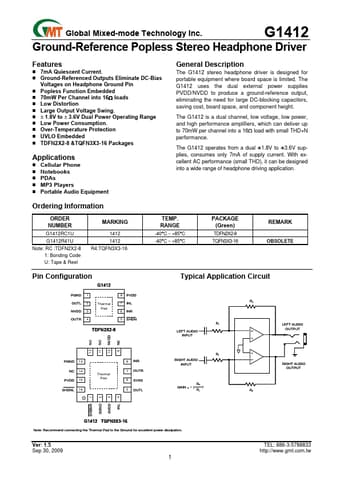

Preview of G1412 PDF

Datasheet Details

Part number:

G1412

Manufacturer:

Global Mixed-mode Technology

File Size:

77.09 KB

Description:

Ground-reference popless stereo headphone driver.
