G1421 Datasheet, Amplifier, Global Mixed-mode Technology

G1421 Features

  • Amplifier Depop Circuitry Integrated
  • Output Power at 1% THD+N, VDD=5V
  • 1.8W/CH (typical) into a 4Ω Load
  • 1.2W/CH (typical) into a 8Ω Load
  • Eliminates Headphone

PDF File Details

Part number:

G1421

Manufacturer:

Global Mixed-mode Technology

File Size:

481.50kb

Download:

📄 Datasheet

Description:

2w stereo audio amplifier. G1421 is a stereo audio power amplifier in 24pin TSSOP thermal pad package. It can drive 1.8W continuous RMS power into 4Ω load per c

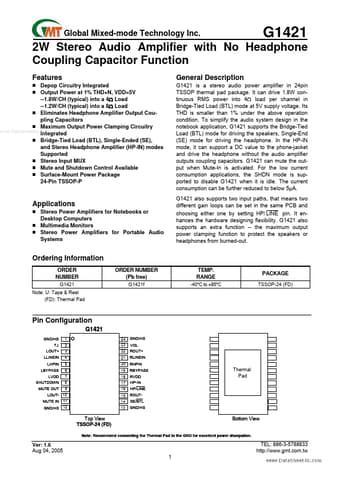

Datasheet Preview: G1421 📥 Download PDF (481.50kb)
Page 2 of G1421 Page 3 of G1421

G1421 Application

  • Applications the SHDN mode is supported to disable G1421 when it is idle. The current consumption can be further reduced to below 5µA. G1421 also s
