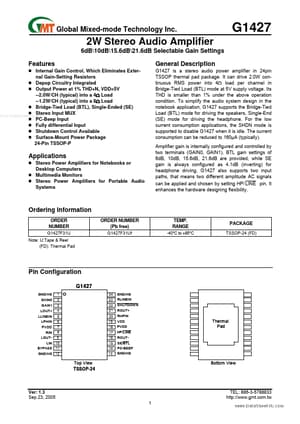

G1427, G1427_GlobalMixed 2W Stereo Audio Amplifier

Global Mixed-mode Technology Inc.G1427 2W Stereo Audio Amplifier 6dB10dB15.6dB21.6dB Selectable Gain Settings .
G1427 is a stereo audio power amplifier in 24pin TSSOP thermal pad package.

G1427_GlobalMixed-modeTechnology.pdf

G1427 Datasheet Preview — This datasheet PDF includes multiple part numbers: G1427, G1427_GlobalMixed. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

G1427, G1427_GlobalMixed

Manufacturer:

Global Mixed-mode Technology

File Size:

380.07 KB

Description:

2W Stereo Audio Amplifier

Note:

This datasheet PDF includes multiple part numbers: G1427, G1427_GlobalMixed.
Please refer to the document for exact specifications by model.

Features

* Internal Gain Control, Which Eliminates External Gain-Setting Resistors
* Depop Circuitry Integrated
* Output Power at 1% THD+N, VDD=5V
* 2.0W/CH (typical) into a 4Ω Load
* 1.2W/CH (typical) into a 8Ω Load
* Bridge-Tied Load (BTL), Single-Ended (SE)
* St

Applications

* the SHDN mode is supported to disable G1427 when it is idle. The current consumption can be reduced to 160µA (typically). Amplifier gain is internally configured and controlled by two terminals (GAIN0, GAIN1). BTL gain settings of 6dB, 10dB, 15.6dB, 21.6dB are provided, while SE gain is always conf
