G1427F31U 2W Stereo Audio Amplifier

G1427 is a stereo audio power amplifier in 24pin TSSOP thermal pad package. It can drive 2.0W continuous RMS power into 4Ω load per channel in Bridge-Tied Load (BTL) mode at 5V supply voltage. Its THD is smaller than 1% under the above operation condition. To simplify the audio system design in the .

G1427F31U Features

* Internal Gain Control, Which Eliminates External Gain-Setting Resistors

* Depop Circuitry Integrated

* Output Power at 1% THD+N, VDD=5V

* 2.0W/CH (typical) into a 4Ω Load

* 1.2W/CH (typical) into a 8Ω Load

* Bridge-Tied Load (BTL), Single-Ended (SE) ww

G1427_GlobalMixed-modeTechnology.pdf

This datasheet PDF includes multiple part numbers: G1427F31U, G1427_GlobalMixed. Please refer to the document for exact specifications by model.

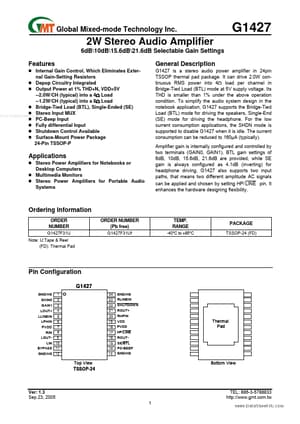

G1427F31U Datasheet Preview Page 2 G1427F31U Datasheet Preview Page 3

Datasheet Details

Part number:

G1427F31U, G1427_GlobalMixed

Manufacturer:

Global Mixed-mode Technology

File Size:

380.07 KB

Description:

2w stereo audio amplifier.

Note:

This datasheet PDF includes multiple part numbers: G1427F31U, G1427_GlobalMixed.
Please refer to the document for exact specifications by model.
