G1426, G1426_GlobalMixed Datasheet - Global Mixed-mode Technology

G1426, G1426_GlobalMixed, 2.2W Stereo Audio Amplifier

Global Mixed-mode Technology Inc.G1426 2.2W Stereo Audio Amplifier .

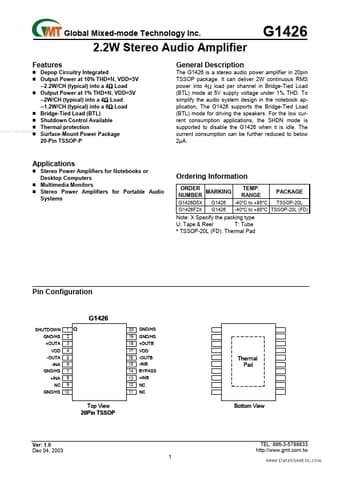

The G1426 is a stereo audio power amplifier in 20pin TSSOP package.

datasheet Preview Page 1 from Datasheet4u.com

G1426_GlobalMixed-modeTechnology.pdf

G1426 Datasheet Preview — This datasheet PDF includes multiple part numbers: G1426, G1426_GlobalMixed. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

G1426, G1426_GlobalMixed

Manufacturer:

Global Mixed-mode Technology

File Size:

349.01 KB

Description:

2.2W Stereo Audio Amplifier

Note:

This datasheet PDF includes multiple part numbers: G1426, G1426_GlobalMixed.
Please refer to the document for exact specifications by model.

Features

* Depop Circuitry Integrated
* Output Power at 10% THD+N, VDD=5V

Applications

* the SHDN mode is supported to disable the G1426 when it is idle. The current consumption can be further reduced to below 2µA.
* 2.2W/CH (typical) into a 4Ω Load
* 2W/CH (typical) into a 4Ω Load
* 1.2W/CH (typical) into a 8Ω Load
* Bridge-Tied Load (BTL)
* Shut
