G1450 Datasheet, Amplifier, Global Mixed-mode Technology

G1450 Features

• Amplifier
• 32 Steps DC Volume Control from +20dB ~-80dB
• Depop Circuitry Integrated
• Output Power at 1% THD+N, VDD=5V
• 1.9W/CH (typical) into a 4Ω Load

PDF File Details

Part number:

G1450

Manufacturer:

Global Mixed-mode Technology

File Size:

76.22kb

Download:

📄 Datasheet

Description:

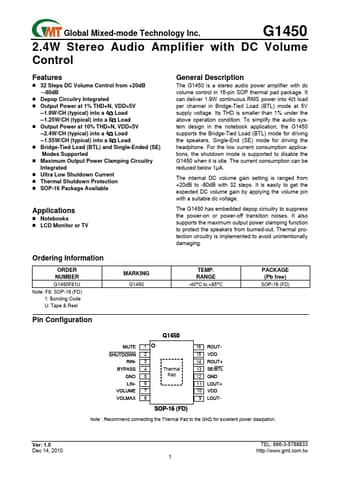

2.4w stereo audio amplifier. The G1450 is a stereo audio power amplifier with dc volume control in 16-pin SOP thermal pad package. It can deliver 1.9W continuous

G1450 Application

• Applications
• Notebooks
• LCD Monitor or TV Ordering Information ORDER NUMBER G1450F81U Note: F8: SOP-16 (FD) 1: Bonding Code U: T
