G1454L Datasheet, Amplifier, Global Mixed-mode Technology

G1454L Features

  • Amplifier
  • Depop Circuitry Integrated
  • 3V to 5.5V Operation
  • Output Power at 10% THD+N, VCC=5V
  • 2.1W (typical) into a 3Ω Load
  • Output Power at 1% THD+N

PDF File Details

Part number:

G1454L

Manufacturer:

Global Mixed-mode Technology

File Size:

79.96kb

Download:

📄 Datasheet

Description:

2.0w stereo audio amplifier. The G1454/G1454L is a stereo audio power amplifier in 16 pin TQFN3X3-16 with thermal pad package. It can drive 1.45W continuous RMS p

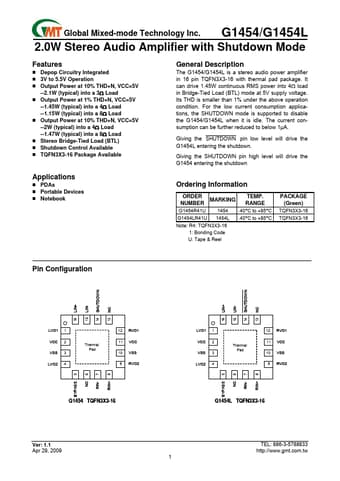

Datasheet Preview: G1454L 📥 Download PDF (79.96kb)

G1454L Application

  • Applications
  • PDAs
  • Portable Devices
  • Notebook General Description The G1454/G1454L is a stereo audio power amplifier in

TAGS

G1454L
2.0W
Stereo
Audio
Amplifier
Global Mixed-mode Technology
