G2987

DDR Termination Regulator

G2987 Features

* Support DDR I (1.25 VTT), DDR II (0.9 VTT), DDR III (0.75 VTT), DDR IIIL (0.675VTT) and DDR IV (0.6 VTT) Requirements

* VCNTL Supply Voltage: 3V to 5.5V

* Termination Supply Voltage : 1.2V to 3.6V

* Stable with Output Ceramic Capacitor

* Over Current Protect

G2987 General Description

The G2987 is a linear regulator designed to meet the JEDEC SSTL (Series Stub Termination Logic) specifications in DDRI/II/III/IIIL/IV

*SDRAM systems. It provides accurate and fast response with up to 1.8A source/sink ability in load transient to track reference voltage. The terminated voltag.

G2987 Datasheet (87.03 KB)

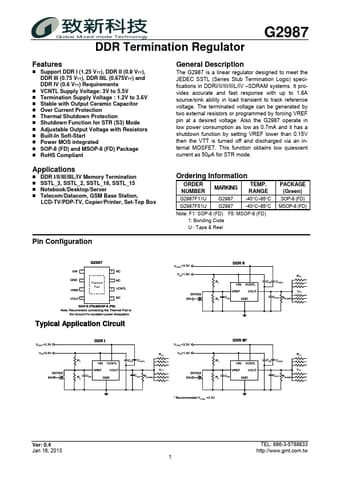

Preview of G2987 PDF

Datasheet Details

Part number:

G2987

Manufacturer:

Global Mixed-mode Technology

File Size:

87.03 KB

Description:

Ddr termination regulator.
