G5172 - Synchronous Step Down

Product Overview

Global Mixed-mode Technology

📥 Download Datasheet

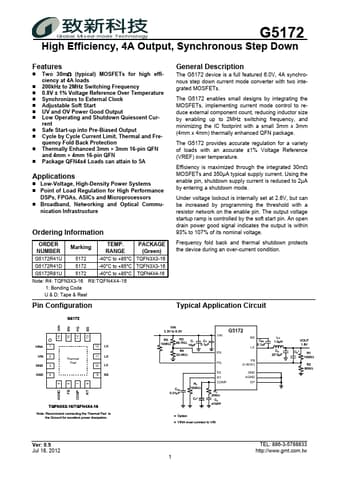

G5172 Synchronous Step Down by Global Mixed-mode Technology - Datasheet Preview — Datasheet preview – G5172

Datasheet Details

Part number	G5172
Manufacturer	Global Mixed-mode Technology
File Size	145.01 KB
Description	Synchronous Step Down
Datasheet	G5172 Datasheet
Additional preview pages of the G5172 datasheet.

Product details

Features

Two 30mΩ (typical) MOSFETs for high efficiency at 4A loads.
200kHz to 2MHz Switching Frequency.
0.8V ± 1% Voltage Reference Over Temperature.
Synchronizes to External Clock.
Adjustable Soft Start.
UV and OV Power Good Output.
Low Operating and Shutdown Quiescent Cur- rent.
Safe Start-up into Pre-Biased Output.
Cycle by Cycle Current Limit, Thermal and Fre- quency Fold Back Protection.
Thermally Enhanced 3m.
