G5177C Datasheet, Converter, Global Mixed-mode Technology

G5177C Features

  • Converter
  • Up to 90% Efficiency at Iout=2A VOUT = 5V from 3.3V Input
  • Low 110μA Quiescent Current
  • Guaranteed 3A Output Current at VOUT = 5V from 3.3V Input
  • 5

PDF File Details

Part number:

G5177C

Manufacturer:

Global Mixed-mode Technology

File Size:

1.08MB

Download:

📄 Datasheet

Description:

Rectifier step up converter. The G5177C is a compact, high-efficiency, synchronous step-up converter with power Mosfets embedded and with output turn off true shu

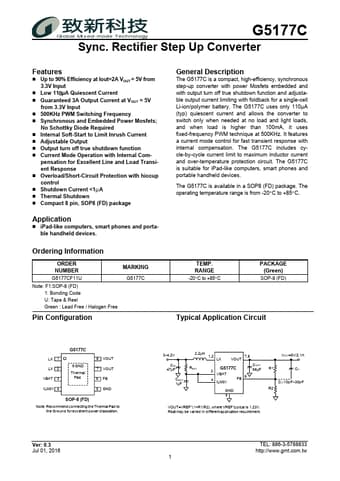

Datasheet Preview: G5177C 📥 Download PDF (1.08MB)
Page 2 of G5177C Page 3 of G5177C
