G5562 Datasheet, Supply, Global Mixed-mode Technology

G5562 Features

• Supply
• 8V to 14V Input Voltage Range
• 500kHz/750kHz Fixed Switching Frequency
• VS Step-Up Converter ‹ Current Mode ‹ 1% Feedback Accuracy ‹ Output Voltage Range up

PDF File Details

Part number:

G5562

Manufacturer:

Global Mixed-mode Technology

File Size:

41.14kb

Download:

📄 Datasheet

Description:

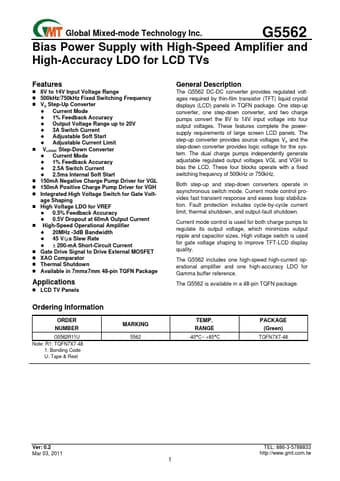

Bias power supply. The G5562 DC-DC converter provides regulated voltages required by thin-film transistor (TFT) liquid crystal displays (LCD) panels in

G5562 Application

• Applications
• LCD TV Panels Ordering Information ORDER NUMBER G5562R11U Note: R1: TQFN7X7-48 1: Bonding Code U: Tape & Reel MARKING 5562
