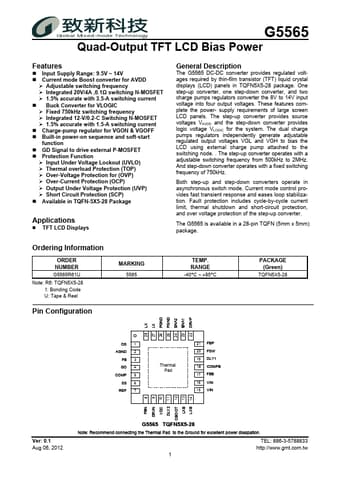

G5565 Datasheet, Power, Global Mixed-mode Technology

G5565 Features

• Power
• Input Supply Range: 9.5V ~ 14V
• Current mode Boost converter for AVDD ¾ Adjustable switching frequency ¾ Integrated 20V/4A ,0.1Ω switching N-MOSFET ¾ 1.5% accurate wi

PDF File Details

Part number:

G5565

Manufacturer:

Global Mixed-mode Technology

File Size:

115.95kb

Download:

📄 Datasheet

Description:

Quad-output tft lcd bias power. The G5565 DC-DC converter provides regulated voltages required by thin-film transistor (TFT) liquid crystal displays (LCD) panels in

G5565 Application

• Applications
• TFT LCD Displays General Description The G5565 DC-DC converter provides regulated voltages required by thin-film transistor
