M5938C Very Ultra-Low On-Resistance Load Switch

The M5938A/B/C is a N-channel MOSFET power switch designed for high-side load-switching applications, and the device has a typical RDS(ON) of 5.5mΩ / 11mΩ / 22mΩ and the output current is limited to 10A / 6A / 4A. In the M5938A/B/C, a discharge path is added for quick output discharge when the switc.

M5938C Features

* Integrated Single Channel Load Switch

* Input Voltage Range: 0.8V to 5.5V

* Ultra-low ON-Resistance M5938A = 5.5 mΩ M5938B = 11 mΩ M5938C = 22 mΩ

* Continuous Switch Current M5938A = 10A M5938B = 6A M5938C = 4A

* Low Threshold Control Inputs

* Adjust

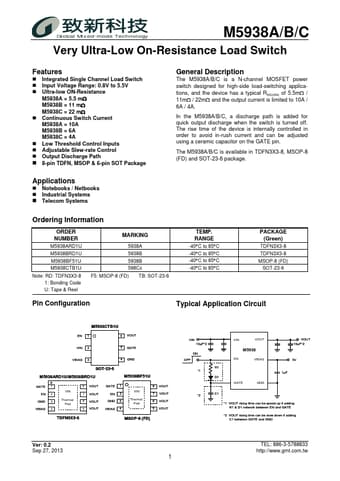

M5938A-GlobalMixedmodeTechnology.pdf

M5938C Datasheet Preview — This datasheet PDF includes multiple part numbers: M5938C, M5938A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M5938C, M5938A

Manufacturer:

Global Mixed-mode Technology

File Size:

40.27 KB

Description:

Very ultra-low on-resistance load switch.

Note:

This datasheet PDF includes multiple part numbers: M5938C, M5938A.
Please refer to the document for exact specifications by model.
