M59DR008F, M59DR008 Datasheet - STMicroelectronics

M59DR008F 8 Mbit Low Voltage Flash Memory

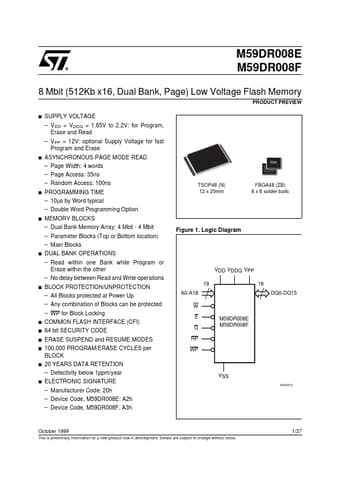

M59DR008E M59DR008F 8 Mbit (512Kb x16, Dual Bank, Page) Low Voltage Flash Memory PRODUCT PREVIEW s SUPPLY VOLTAGE VDD = VDDQ = 1.65V to 2.2V: for Program, Erase and Read VPP = 12V: optional Supply Voltage for fast Program and Erase s ASYNCHRONOUS PAGE MODE READ Page Width: 4 words Page Access: 35ns Random Access: 100ns s PROGRAMMING TIME 10µs by Word typical Double Word Programming Option s MEMORY BLOCKS Dual Bank .

M59DR008_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: M59DR008F, M59DR008. Please refer to the document for exact specifications by model.
M59DR008F Datasheet Preview Page 2 M59DR008F Datasheet Preview Page 3

Datasheet Details

Part number:

M59DR008F, M59DR008

Manufacturer:

STMicroelectronics ↗

File Size:

267.87 KB

Description:

8 mbit low voltage flash memory.

Note:

This datasheet PDF includes multiple part numbers: M59DR008F, M59DR008.
Please refer to the document for exact specifications by model.
