M59DR032A

32 Mbit 2Mb x16 / Dual Bank / Page Low Voltage Flash Memory

M59DR032A Features

* asymmetrically blocked architecture. M59DR032 has an array of 71 blocks and is divided into two banks A and B, providing Dual Bank operations. While programming or erasing in Bank A, read operations are possible into Bank B or vice versa. The memory also features an erase suspend allowing to read or

M59DR032A General Description

The M59DR032 is a 32 Mbit non-volatile Flash memory that may be erased electrically at block level and programmed in-system on a Word-byWord basis using a 1.65V to 2.2V V DD supply for the circuitry. For Program and Erase operations the necessary high voltages are generated internally. The device su.

M59DR032A Datasheet (270.71 KB)

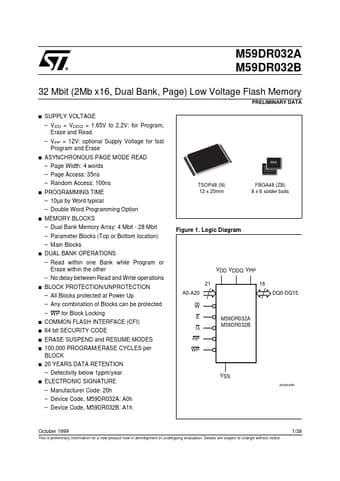

Preview of M59DR032A PDF

Datasheet Details

Part number:

M59DR032A

Manufacturer:

STMicroelectronics ↗

File Size:

270.71 KB

Description:

32 mbit 2mb x16 / dual bank / page low voltage flash memory.
M59DR032A M59DR032B 32 Mbit (2Mb x16, Dual Bank, Page) Low Voltage Flash Memory PRELIMINARY DATA s SUPPLY VOLTAGE

* VDD = VDDQ = 1.65V to 2.2.
