M59DR016D Datasheet - STMicroelectronics

M59DR016D 16 Mbit 1.8V Supply Flash Memory

M59DR016C M59DR016D 16 Mbit (1Mb x16, Dual Bank, Page) 1.8V Supply Flash Memory PRODUCT PREVIEW s SUPPLY VOLTAGE VDD = VDDQ = 1.65V to 2.2V for Program, Erase and Read VPP = 12V for fast Program (optional) s ASYNCHRONOUS PAGE MODE READ Page Width: 4 words Page Access: 35ns Random Access: 100ns s PROGRAMMING TIME 10µs by Word typical Double Word Programming Option s MEMORY BLOCKS Dual Bank Memory Array: 4 Mbit - 12 M.

M59DR016D Datasheet (240.78 KB)

Preview of M59DR016D PDF

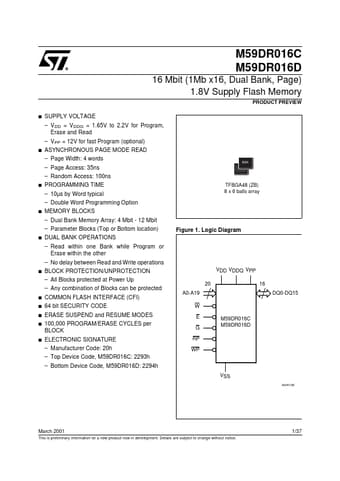

M59DR016D Datasheet Preview Page 2 M59DR016D Datasheet Preview Page 3

Datasheet Details

Part number:

M59DR016D

Manufacturer:

STMicroelectronics ↗

File Size:

240.78 KB

Description:

16 mbit 1.8v supply flash memory.
