GP2D003A060A Datasheet - Global Power

GP2D003A060A, 600V SiC Schottky Diode

600V SiC Schottky Diode Amp+ TM .

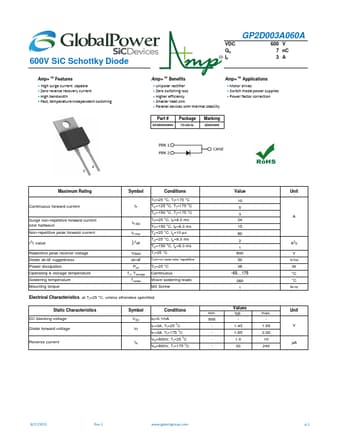

datasheet Preview Page 1 from Datasheet4u.com

GP2D003A060A-GlobalPower.pdf

GP2D003A060A Datasheet Preview — Preview of GP2D003A060A PDF

Datasheet Details

Part number:

GP2D003A060A

Manufacturer:

Global Power

File Size:

571.75 KB

Description:

600V SiC Schottky Diode

Features

* High surge current capable
* Zero reverse recovery current
* High bandwidth
* Fast, temperature-independent switching GP2D003A060A VDC 600 V QC 7 nC IF 3 A Amp+ TM Benefits
* Unipolar rectifier
* Zero switching loss
* Higher efficiency

Applications

* Motor drives
* Switch mode power supplies
* Power factor correction Part # GP2D003A060A Package TO-220-2L Marking 2D003A060 Maximum Rating Continuous forward current Surge non-repetitive forward current sine halfwave Non-repetitive peak forward current i 2t value Repeti
