GP2D05, Distance Measuring Sensor

GP2D05 GP2D05 s .

datasheet Preview Page 1 from Datasheet4u.com

GP2D05_SharpElectrionicComponents.pdf

GP2D05 Datasheet Preview — Preview of GP2D05 PDF

Datasheet Details

Part number:

GP2D05

Manufacturer:

Sharp Electrionic Components

File Size:

42.99 KB

Description:

Distance Measuring Sensor

Features

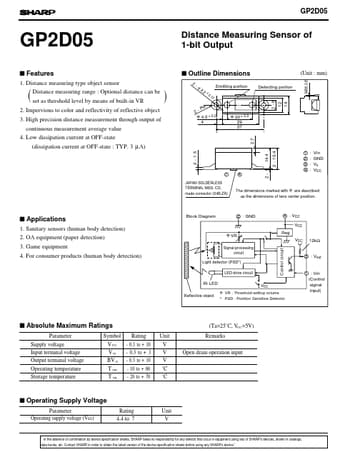

* 1. Distance measuring type object sensor Distance measuring range : Optional distance can be set as threshold level by means of built-in VR Distance Measuring Sensor of 1-bit Output s Outline Dimensions 2- (Unit : mm) Detecting portion 2-8 12 14 MAX.0.8 1 2 3 4 : : : : Vin GND Vo VCC VCC VCC Contr

Applications

* 1. Sanitary sensors (human body detection) 2. OA equipment (paper detection) 3. Game equipment 4. For consumer products (human body detection) Block Diagram 2 : GND g VR Signal processing circuit Light detector (PSD
* ) LED drive circuit IR LED Reflective object VCC g VR : Threshold setting vo
