GP2D120

Optoelectronic Device

GP2D120 Features

* Analog output

* Effective range: 4 to 30 cm

* Typical response time: 39 ms

* Typical start up delay: 44 ms

* Average Current Consumption: 33 mA DESCRIPTION The GP2D120 is a distance measuring sensor with integrated signal processing and analog voltage output

GP2D120 General Description

The GP2D120 is a distance measuring sensor with integrated signal processing and analog voltage output. GND GP2D120 Optoelectronic Device 1 23 PIN SIGNAL NAME 1 VO 2 GND 3 VCC Figure 1. Pinout VCC GP2D120-8 PSD SIGNAL PROCESSING CIRCUIT VOLTAGE REGULATOR OSCILLATOR CIRCUIT LED LED DRIVE CIR.

GP2D120 Datasheet (195.63 KB)

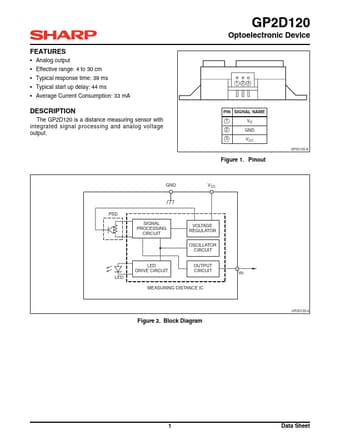

Preview of GP2D120 PDF
