GSM1012E - 20V N-Channel MOSFET

Product Overview

Globaltech

📥 Download Datasheet

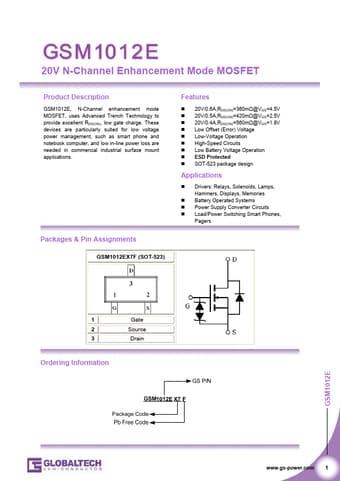

GSM1012E 20V N-Channel MOSFET by Globaltech - Datasheet Preview — Datasheet preview – GSM1012E

Datasheet Details

Part number	GSM1012E
Manufacturer	Globaltech
File Size	0.97 MB
Description	20V N-Channel MOSFET
Datasheet	GSM1012E Datasheet
Additional preview pages of the GSM1012E datasheet.

Product details

Description

GSM1012E, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.

Features

20V/0.6A,RDS(ON)=360mΩ@VGS=4.5V.
20V/0.5A,RDS(ON)=420mΩ@VGS=2.5V.
20V/0.4A,RDS(ON)=560mΩ@VGS=1.8V.
Low Offset (Error) Voltage.
Low-Voltage Operation.
High-Speed Circuits.
Low Battery Voltage Operation.
ESD Protected.
SOT-523 package design.
