GSM1072KTFF - 20V N-Channel Enhancement Mode MOSFET

Product Overview

Globaltech

📥 Download Datasheet

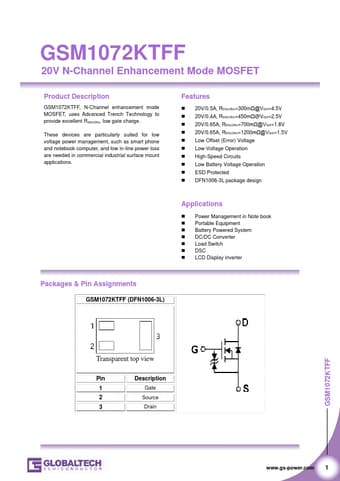

GSM1072KTFF 20V N-Channel Enhancement Mode MOSFET by Globaltech - Datasheet Preview — Datasheet preview – GSM1072KTFF

Datasheet Details

Part number	GSM1072KTFF
Manufacturer	Globaltech
File Size	520.73 KB
Description	20V N-Channel Enhancement Mode MOSFET
Datasheet	GSM1072KTFF Datasheet
Additional preview pages of the GSM1072KTFF datasheet.

Product details

Description

GSM1072KTFF, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.

Features

20V/0.5A, RDS(ON)=300mΩ@VGS=4.5V.
20V/0.4A, RDS(ON)=450mΩ@VGS=2.5V.
20V/0.65A, RDS(ON)=700mΩ@VGS=1.8V.
20V/0.65A, RDS(ON)=1200mΩ@VGS=1.5V.
Low Offset (Error) Voltage.
Low-Voltage Operation.
High-Speed Circuits.
Low Battery Voltage Operation.
ESD Protected.
DFN1006-3L package design.
