GSM8205 - N-Channel Power MOSFET

Product Overview

Globaltech

📥 Download Datasheet

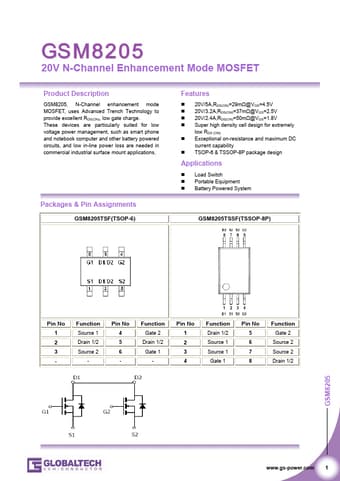

GSM8205 N-Channel Power MOSFET by Globaltech - Datasheet Preview — Datasheet preview – GSM8205

Datasheet Details

Part number	GSM8205
Manufacturer	Globaltech
File Size	520.54 KB
Description	N-Channel Power MOSFET
Datasheet	GSM8205 Datasheet
Additional preview pages of the GSM8205 datasheet.

Product details

Description

GSM8205, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.

Features

20V/5A,RDS(ON)=29mΩ@VGS=4.5V.
20V/3.2A,RDS(ON)=37mΩ@VGS=2.5V.
20V/2.4A,RDS(ON)=50mΩ@VGS=1.8V.
Super high density cell design for extremely low RDS (ON).
Exceptional on-resistance and maximum DC current capability.
TSOP-6 & TSSOP-8P package design.
