GR8837H, Green-Mode PWM Controller

Preliminary GR8837H Green-Mode PWM Controller with Hiccup Protection .
The GR8837H is a highly-integrated, low startup current, current mode PWM controller with green-mode function.

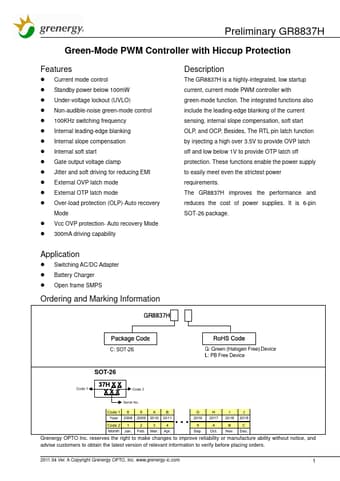

datasheet Preview Page 1 from Datasheet4u.com

GR8837H-Grenergy.pdf

GR8837H Datasheet Preview — Preview of GR8837H PDF

Datasheet Details

Part number:

GR8837H

Manufacturer:

Grenergy

File Size:

951.25 KB

Description:

Green-Mode PWM Controller

Features

* Current mode control Standby power below 100mW Under-voltage lockout (UVLO) Non-audible-noise green-mode control 100KHz switching frequency Internal leading-edge blanking Internal slope compensation Internal soft start Gate output voltage clamp Jitter and soft driving for reducing EMI External OVP l

Applications

* no load. The system should operate on burst mode, Fig. 11 Gate Clamp/Soft Driving Driver is clamped to 13V by an internal clamping circuit. A totem pole gate driver is fine tuned to meet both EMI and efficiency requirement in low power application. An internal pull low circuit is activated after pr
