GR8853A - Self-oscillating Half-bridge Driver

Grenergy

The GR8853A by Grenergy is a Self-oscillating Half-bridge Driver. Below is the official datasheet preview.

📥 Download Datasheet

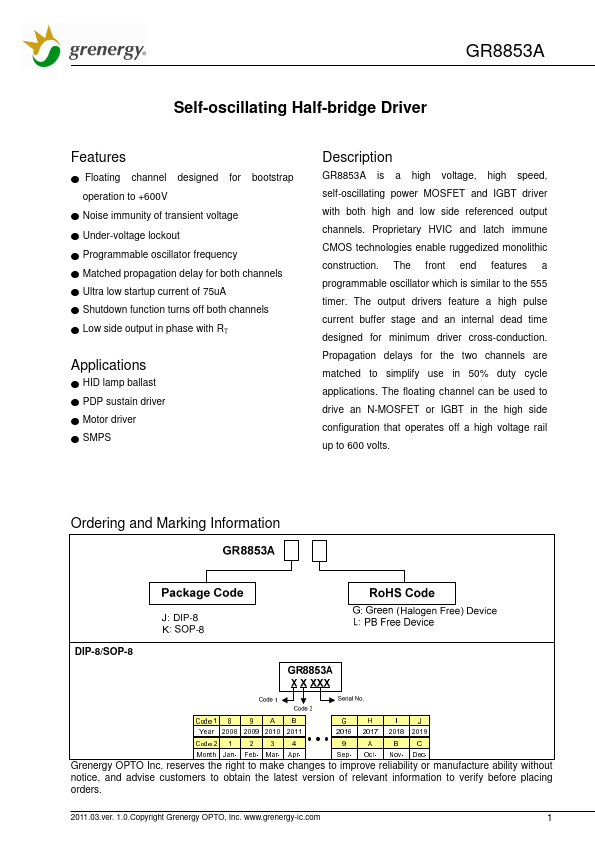

GR8853A Self-oscillating Half-bridge Driver by Grenergy - Datasheet Preview — Official preview page of the GR8853A Self-oscillating Half-bridge Driver datasheet (Grenergy).

Datasheet Details

Part number	GR8853A
Manufacturer	Grenergy
File Size	730.61 KB
Description	Self-oscillating Half-bridge Driver
Datasheet	GR8853A-Grenergy.pdf

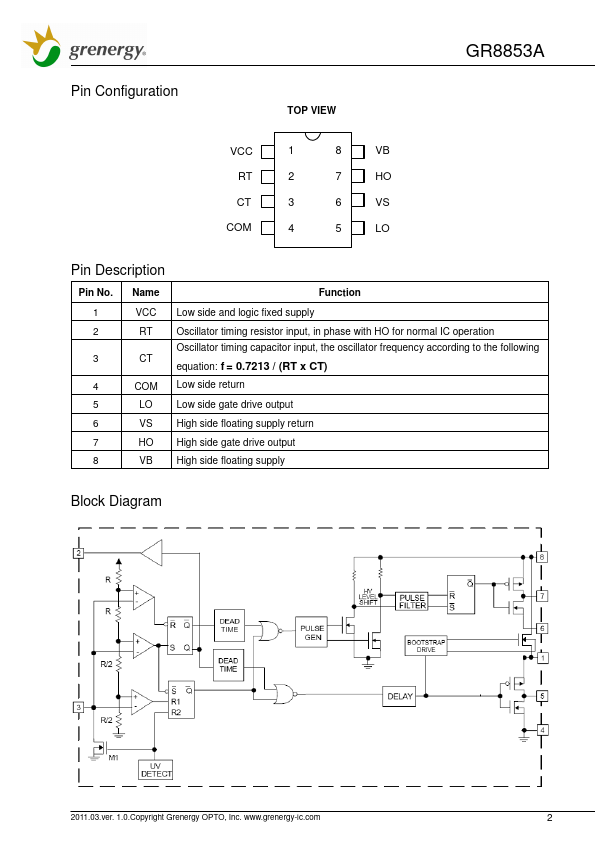

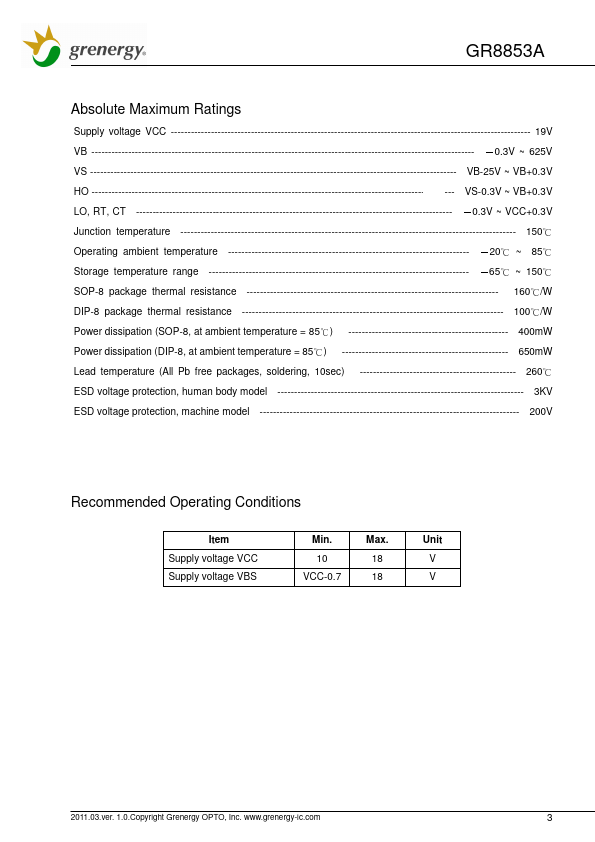

Additional preview pages of the GR8853A datasheet.

GR8853A Product details

Description

GR8853A is a high voltage, high speed, self-oscillating power MOSFET and IGBT driver with both high and low side referenced output channels.

Features

Floating channel designed for bootstrap operation to +600V.
Noise immunity of transient voltage.
Under-voltage lockout.
Programmable oscillator frequency.
Matched propagation delay for both channels.
Ultra low startup current of 75uA.
Shutdown function turns off both channels.
Low side output in phase with RT.
