HM12N65 - 650V N-Channel MOSFET

H&M Semiconductor

📥 Download Datasheet

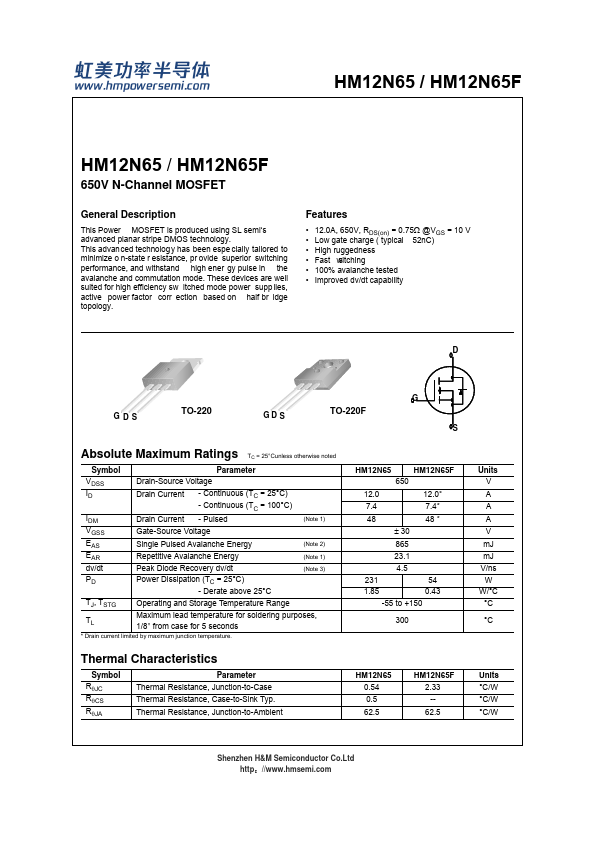

HM12N65 Datasheet Preview — Preview of HM12N65 PDF

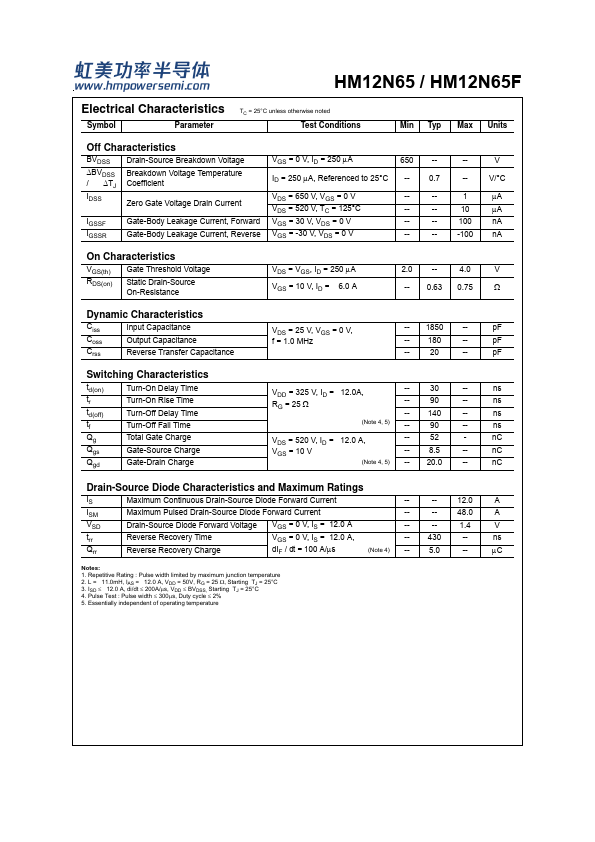

datasheet Preview Page 2

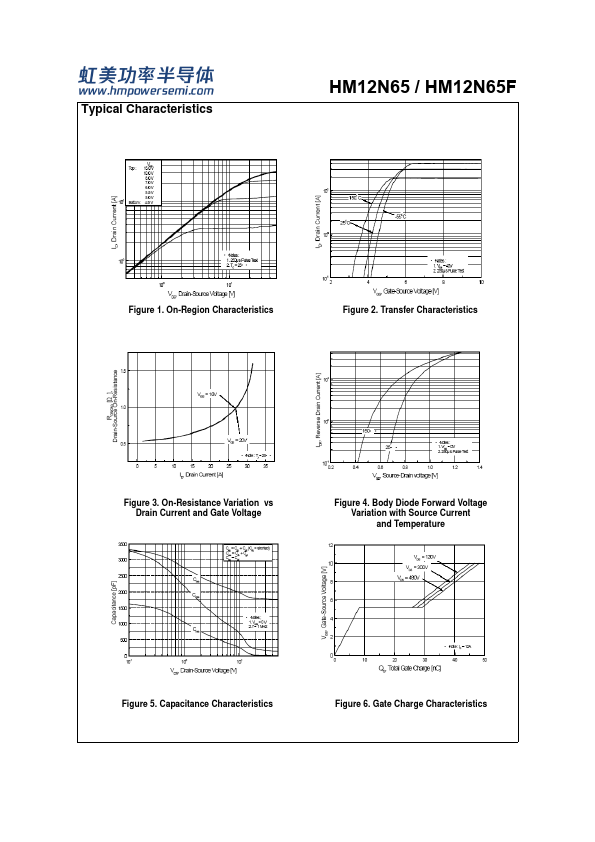

datasheet Preview Page 3

Datasheet Details

Part number	HM12N65
Manufacturer	H&M Semiconductor
File Size	364.78 KB
Description	650V N-Channel MOSFET
Datasheet	HM12N65-HMSemiconductor.pdf

HM12N65 Product details

Description

This Power MOSFET is produced using SL semi‘s advanced planar stripe DMOS technology.

Features

12.0A, 650V, RDS(on) = 0.75Ω @VGS = 10 V.
Low gate charge ( typical 52nC).
High ruggedness.
Fast wsitching.
100% avalanche tested.
Improved dv/dt capability {D GDS TO-220 GD S TO-220F.
◀▲ {G.
{S Absolute Maximum Ratings TC = 25°Cunless otherwise noted Symbol Parameter VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) - Continuous (TC = 100°C) IDM Drain Current - Pulsed (Note 1) VGSS G.
