HM3152 - Low Voltage and High Speed SPDT Analog Switch

Product Overview

H&M Semiconductor

📥 Download Datasheet

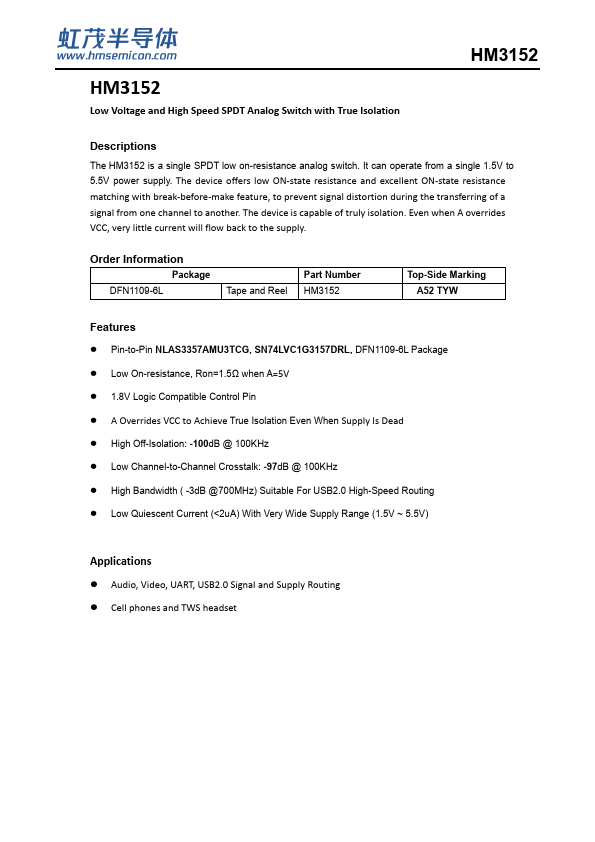

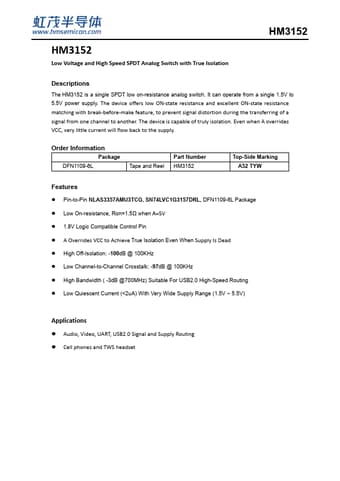

HM3152 Low Voltage and High Speed SPDT Analog Switch by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM3152

Datasheet Details

Part number	HM3152
Manufacturer	H&M Semiconductor
File Size	538.82 KB
Description	Low Voltage and High Speed SPDT Analog Switch
Datasheet	HM3152 Datasheet

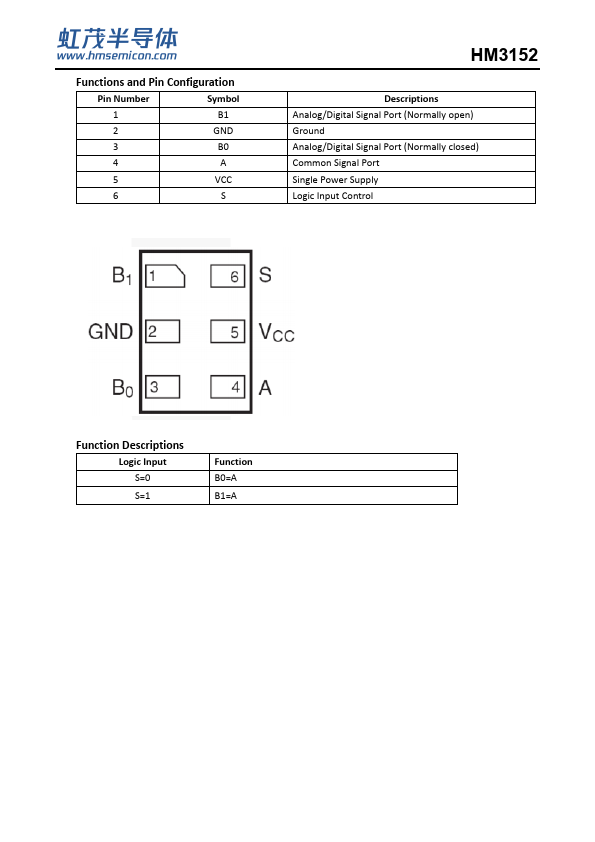

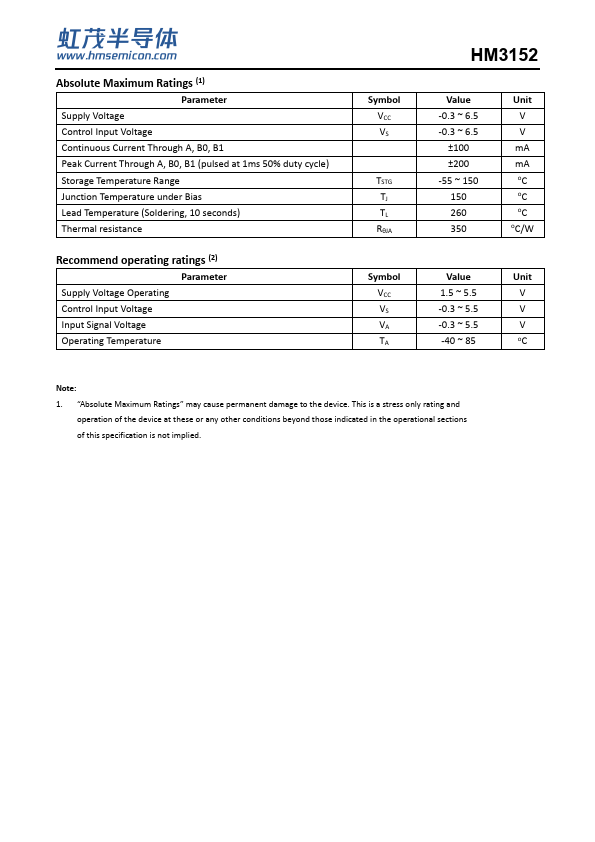

Additional preview pages of the HM3152 datasheet.

Product details

Description

The HM3152 is a single SPDT low on-resistance analog switch.

Features

Pin-to-Pin NLAS3357AMU3TCG, SN74LVC1G3157DRL, DFN1109-6L Package.
Low On-resistance, Ron=1.5Ω when A=5V.
1.8V Logic Compatible Control Pin.
A Overrides VCC to Achieve True Isolation Even When Supply Is Dead.
High Off-Isolation: -100dB @ 100KHz.
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz.
High Bandwidth ( -3dB @700MHz) Suitable For USB2.0 High-Speed Routing.
Low Quiescent Current (.
