HM3P10MR -100V P-Channel Enhancement Mode MOSFET

H&M Semiconductor

Description

HM3P10MR -100V P-Channel Enhancement Mode MOSFET .
The HM3P10MR uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.

📥 Download Datasheet

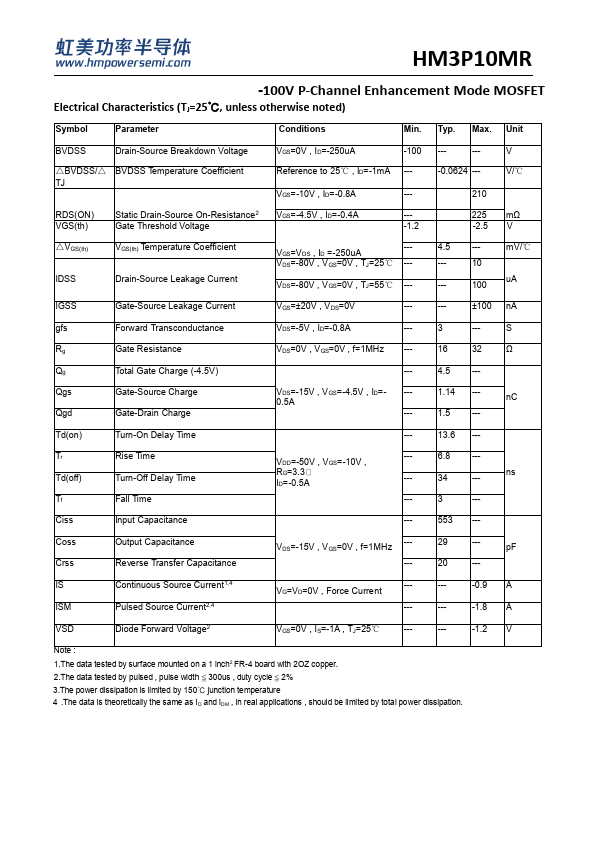

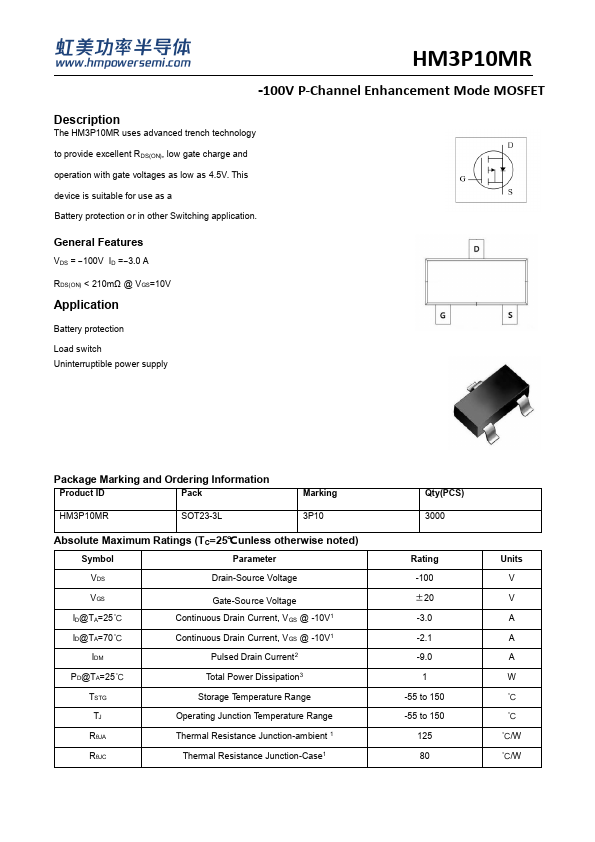

HM3P10MR Datasheet Preview — Preview of HM3P10MR PDF

Datasheet Specifications

Part number: HM3P10MR
Manufacturer: H&M Semiconductor
File Size: 904.75 KB
Datasheet: HM3P10MR-HMSemiconductor.pdf
Description: -100V P-Channel Enhancement Mode MOSFET

Applications

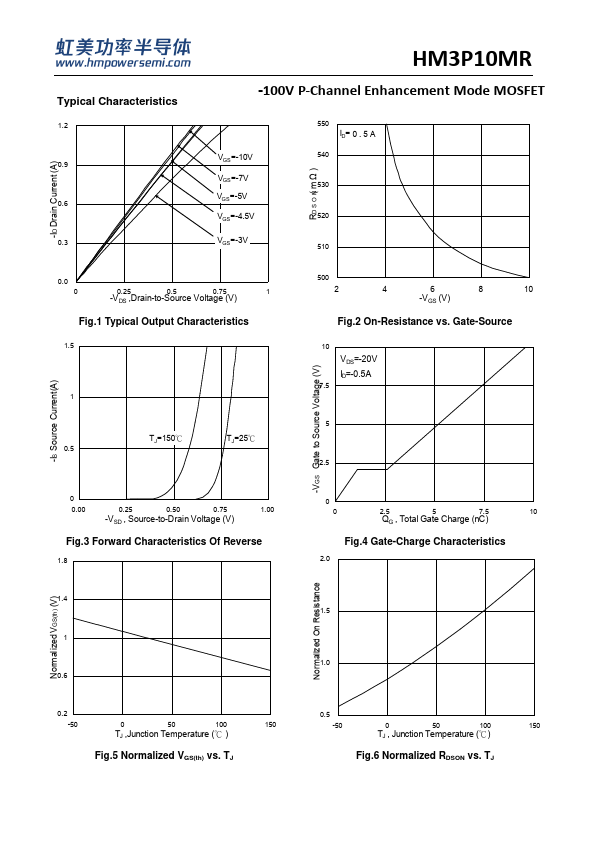

* , should be limited by total power dissipation. -ID Drain Current (A) Typical Characteristics 1.2 0.9 0.6 0.3 HM3P10MR -100V P-Channel Enhancement Mode MOSFET VGS=-10V VGS=-7V VGS=-5V VGS=-4.5V VGS=-3V RD S O (N m Ω ) 550 ID= 0 . 5 A 540 530 520 510 0.0 0 0.25 0.5 0.75 1 -VDS ,Drain-to-S
