HM4822B Datasheet, Mosfet, H&M Semiconductor

HM4822B Features

  • Mosfet
  • VDS =30V,ID =10A RDS(ON) < 11mΩ @ VGS=10V RDS(ON) < 13mΩ @ VGS=4.5V Schematic diagram
  • High density cell design for ultra low Rdson
  • Fully characterized Av

PDF File Details

Part number:

HM4822B

Manufacturer:

H&M Semiconductor

File Size:

635.71kb

Download:

📄 Datasheet

Description:

Dual n-channel enhancement mode power mosfet. The HM4822B uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide va

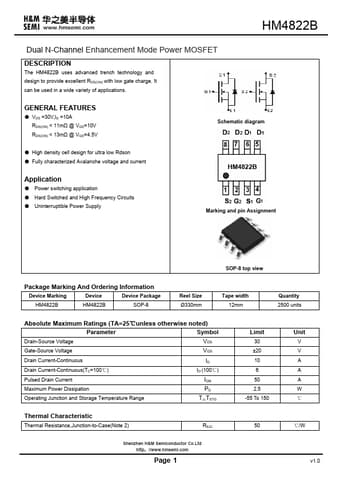

Datasheet Preview: HM4822B 📥 Download PDF (635.71kb)
Page 2 of HM4822B Page 3 of HM4822B

HM4822B Application

  • Applications GENERAL FEATURES
  • VDS =30V,ID =10A RDS(ON) < 11mΩ @ VGS=10V RDS(ON) < 13mΩ @ VGS=4.5V Schematic diagram
  • High den
