HM4805A - Dual P-Channel Enhancement Mode Power MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

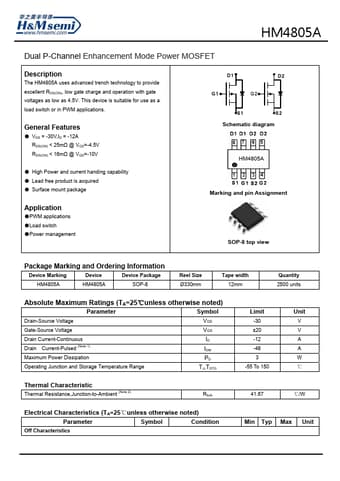

HM4805A Dual P-Channel Enhancement Mode Power MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM4805A

Datasheet Details

Part number	HM4805A
Manufacturer	H&M Semiconductor
File Size	482.29 KB
Description	Dual P-Channel Enhancement Mode Power MOSFET
Datasheet	HM4805A Datasheet
Additional preview pages of the HM4805A datasheet.

Product details

Description

The HM4805A uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V.

Features

VDS = -30V,ID = -12A RDS(ON) < 25mΩ @ VGS=-4.5V RDS(ON) < 16mΩ @ VGS=-10V.
High Power and current handing capability.
Lead free product is acquired.
Surface mount package.
