HM4806B - Dual N-Channel Enhancement Mode Power MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

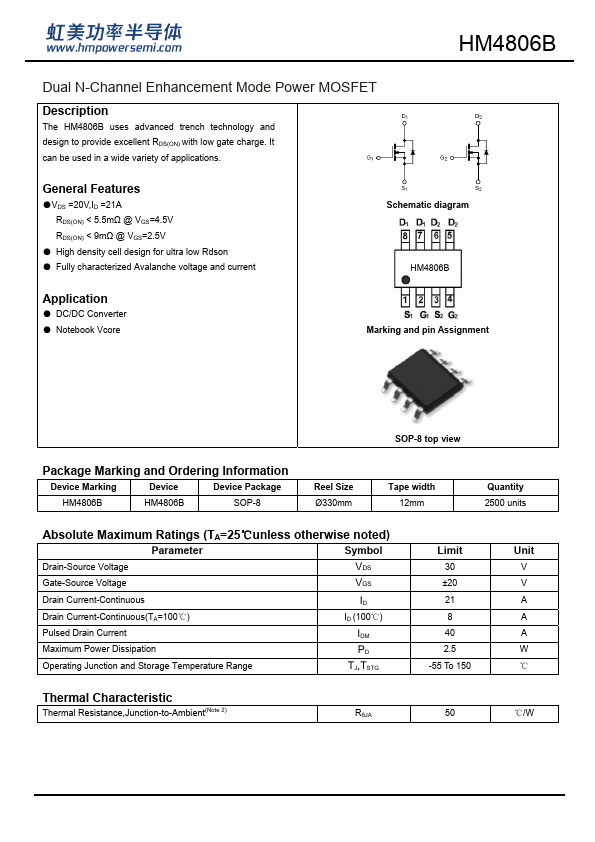

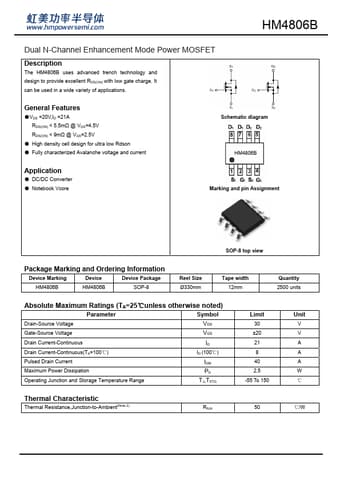

HM4806B Dual N-Channel Enhancement Mode Power MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM4806B

Datasheet Details

Part number	HM4806B
Manufacturer	H&M Semiconductor
File Size	397.76 KB
Description	Dual N-Channel Enhancement Mode Power MOSFET
Datasheet	HM4806B Datasheet

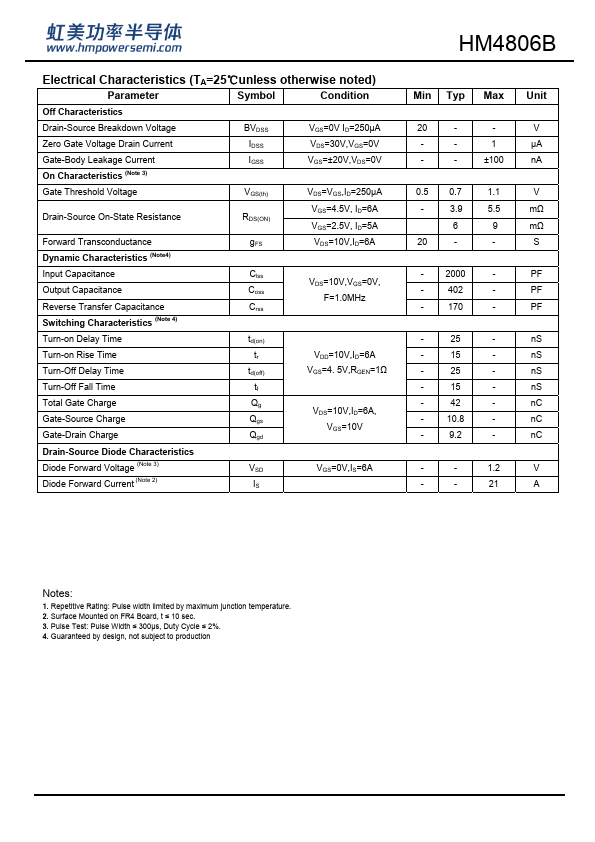

Additional preview pages of the HM4806B datasheet.

Product details

Description

The HM4806B uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS =20V,ID =21A RDS(ON) < 5.5mΩ @ VGS=4.5V RDS(ON) < 9mΩ @ VGS=2.5V.
High density cell design for ultra low Rdson.
Fully characterized Avalanche voltage and current.
