HM4805 - Dual P-Channel Enhancement Mode Power MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

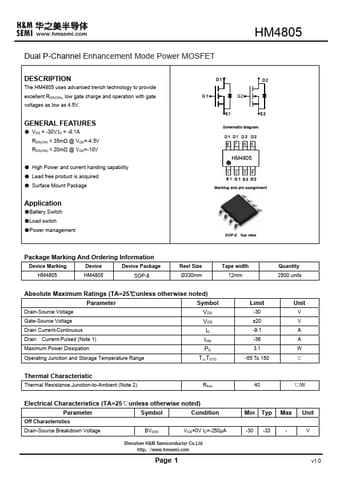

HM4805 Dual P-Channel Enhancement Mode Power MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM4805

Datasheet Details

Part number	HM4805
Manufacturer	H&M Semiconductor
File Size	595.95 KB
Description	Dual P-Channel Enhancement Mode Power MOSFET
Datasheet	HM4805 Datasheet
Additional preview pages of the HM4805 datasheet.

Product details

Description

The HM4805 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V.

Features

VDS = -30V,ID = -9.1A RDS(ON) < 35mΩ @ VGS=-4.5V RDS(ON) < 20mΩ @ VGS=-10V.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package.
