HM6291 Datasheet - H&M Semiconductor

HM6291 boost DC-DC converter

The HM6291 is a current mode boost DC-DC converter. Its PWM circuitry with built-in 0.2Ω power MOSFET make this regulator highly power efficient. The internal compensation network also minimizes as much as 6 external component counts. The non-inverting input of error amplifier connects to a 0.6V pre.

HM6291 Features

* Adjustable Output up to 12V

* Internal Fixed PWM frequency: 1.2MHz

* Precision Feedback Reference Voltage: 0.6V (±2%)

* Internal 0.2Ω, 2A, 18V Power MOSFET

* Shutdown Current: 0.1μA

* Over Temperature Protection

* Adjustable Over Current Protection: 0.5A ~ 2.5A

* Pa

HM6291-HMSemiconductor.pdf

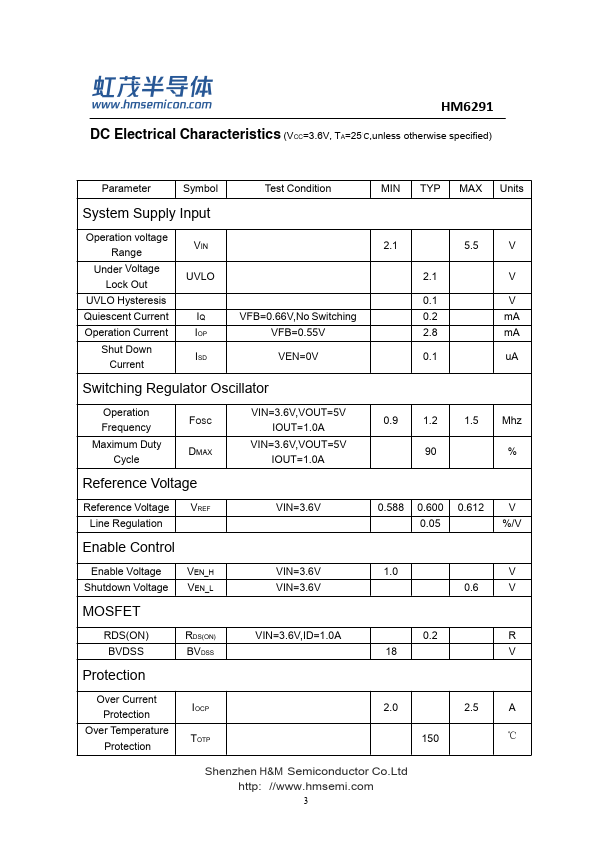

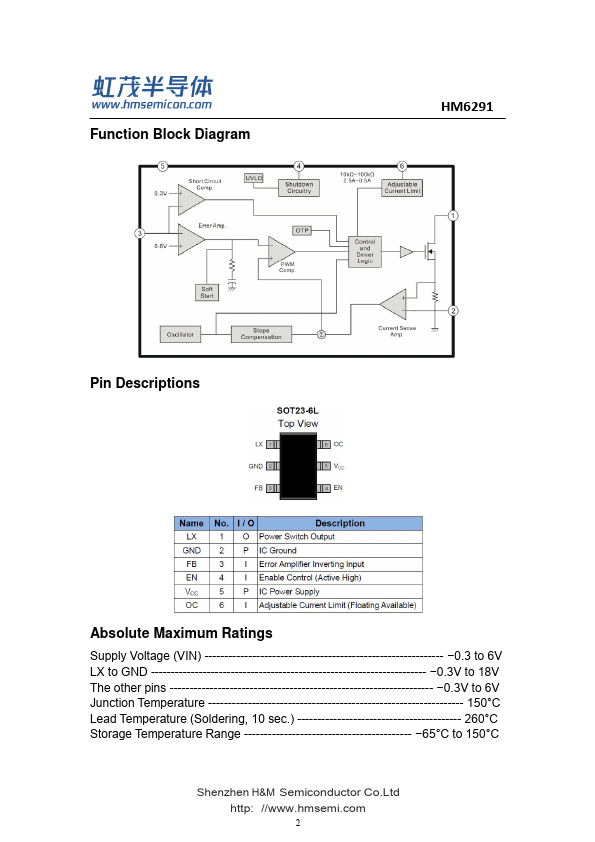

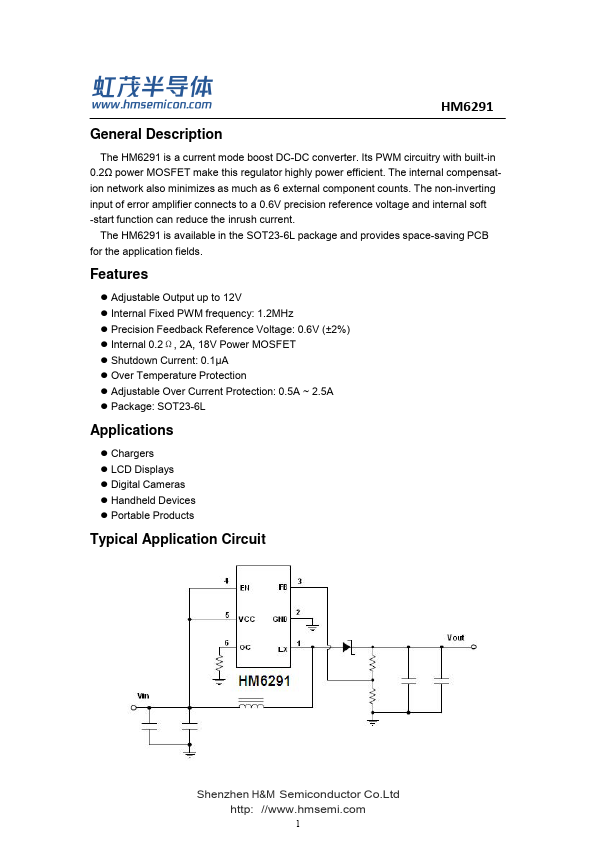

HM6291 Datasheet Preview — Preview of HM6291 PDF

Datasheet Details

Part number:

HM6291

Manufacturer:

H&M Semiconductor

File Size:

476.28 KB

Description:

Boost dc-dc converter.
