HM6298 400KHz 60V 3A Switching Current Boost / Buck-Boost / Inverting DC/DC Converter

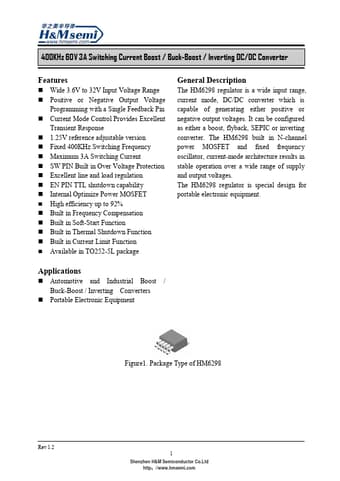

📥 Download Datasheet  Datasheet Preview Page 1

Description

400KHz 60V 3A Switching Current Boost / Buck-Boost / Inverting DC/DC Converter .
The HM6298 regulator is a wide input range, current mode, DC/DC converter which is capable of generating either positive or negative output voltages.

📥 Download Datasheet

Preview of HM6298 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
HM6298
Manufacturer
H&M semi
File Size
622.39 KB
Datasheet
HM6298-HMsemi.pdf
Description
400KHz 60V 3A Switching Current Boost / Buck-Boost / Inverting DC/DC Converter

Features

* n Wide 3.6V to 32V Input Voltage Range n Positive or Negative Output Voltage Programming with a Single Feedback Pin n Current Mode Control Provides Excellent Transient Response n 1.25V reference adjustable version n Fixed 400KHz Switching Frequency n Maximum 3A Switching Current n SW PIN Built in Ov

Applications

* n Automotive and Industrial Boost / Buck-Boost / Inverting Converters n Portable Electronic Equipment Figure1. Package Type of HM6298 Rev 1.2 1 Shenzhen H&M Semiconductor Co. Ltd http://www. hmsemi. com 400KHz 60V 3A Switching Current Boost / Buck-Boost / Inverting DC/DC Converter Pin Configuration
