HM6313 - Step-up DC-DC Converter

HM6313 Description

HM6313 High Efficiency Low Voltage Synchronous Step-up DC/DC Converter GENERAL .
FEATURES The HM6313 is a highly efficient fix frequency synchronous step-up DC/DC converter.

HM6313 Features

* The HM6313 is a highly efficient fix frequency synchronous step-up DC/DC converter. Output voltage of the device is adjustable. Power dissipation during operation is only 40μA typical and drops to less than 1μA in shutdown. The 0.85V to 5V input voltage range makes the HM6313 ideally suitable for s

HM6313 Applications

* Automatic PFM Mode operation increases efficiency at light loads, further extend battery life. Switching frequency is internally set at 1.2MHz, design for use of small value surface mount inductor, input and output capacitors. The internal synchronous switches enhance efficiency. Anti-ringing contr

📥 Download Datasheet

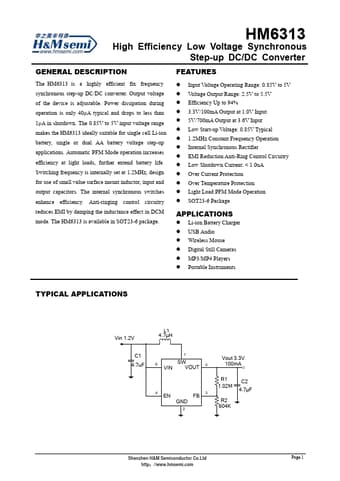

Preview of HM6313 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM6313
Manufacturer
H&M semi
File Size
1.24 MB
Datasheet
HM6313-HMsemi.pdf
Description
Step-up DC-DC Converter
