HM6800 Dual N-Channel Enhancement Mode Power MOSFET

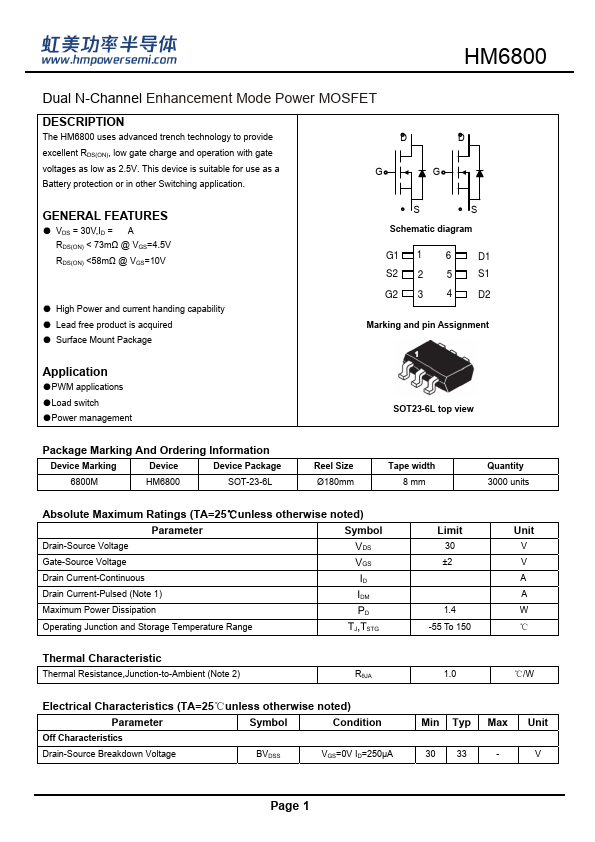

📥 Download Datasheet Datasheet Preview Page 1

Description

HM6800 Dual N-Channel Enhancement Mode Power MOSFET .
The HM6800 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.

📥 Download Datasheet

Preview of HM6800 PDF

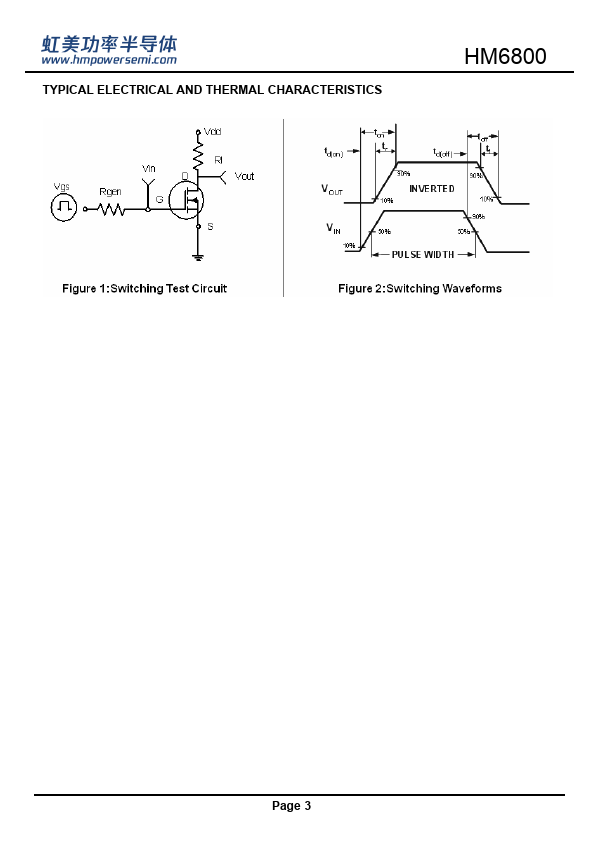

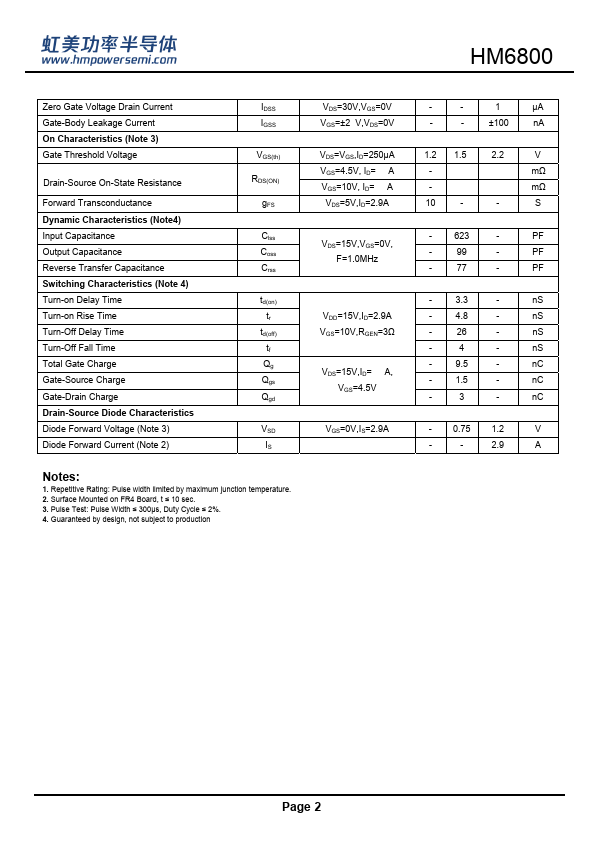

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
HM6800
Manufacturer
H&M Semiconductor
File Size
422.58 KB
Datasheet
HM6800-HMSemiconductor.pdf
Description
Dual N-Channel Enhancement Mode Power MOSFET

Features

* VDS = 30V,ID = A RDS(ON) < 73mΩ @ VGS=4.5V RDS(ON)

Applications

* Load switch
* Power management SOT23-6L top view Package Marking And Ordering Information Device Marking Device Device Package 6800M HM6800 SOT-23-6L Reel Size Ø180mm Tape width 8 mm Quantity 3000 units Absolute Maximum Ratings (TA=25℃unless otherwise noted) Parameter Symbol L
