HM5565A - One Cell Lithium-ion/Polymer Battery Protection IC

HM5565A Description

HM5565A One Cell Lithium-ion/Polymer Battery Protection IC GENERAL .
The HM5565A product is a high integration solution for lithiumion/polymer battery protection.

HM5565A Features

* Protection of Charger Reverse Connection
* Protection of Battery Cell Reverse Connection
* Integrate Advanced Power MOSFET with Equivalent of 35mΩ RSS(ON)
* HM5565A :DFN2X2X0.75-6 Package HM5565A-55:DFN2X2X0.55-6 Package
* Only One External Capacitor Required
* Over-temperature

HM5565A Applications

* One-Cell Lithium-ion Battery Pack Lithium-Polymer Battery Pack Figure 1. Typical Application Circuit HM5565A ORDERING INFORMATION PART NUMBER Package Overcharge Detection Voltage [VCU] (V) Overcharge Release Voltage [VCL] (V) Overdischarge Overdischarge Detection Release Voltage Voltage

📥 Download Datasheet

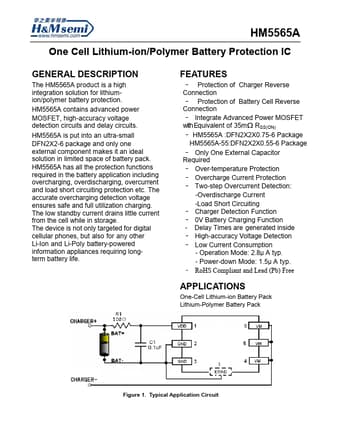

Preview of HM5565A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM5565A
Manufacturer
H&M semi
File Size
2.02 MB
Datasheet
HM5565A-HMsemi.pdf
Description
One Cell Lithium-ion/Polymer Battery Protection IC
