HM5551 - NPN EPITAXIAL PLANAR TRANSISTOR

This page provides the datasheet information for the HM5551, a member of the HM5551_Hi NPN EPITAXIAL PLANAR TRANSISTOR family.

Datasheet Summary

Description

The HM5551 is designed for general purpose applications requiring high breakdown voltages.

Features

  • High collector-emitter breakdown voltage. VCEO>160V(@IC=1mA).
  • Complements to PNP type HM5401 SOT-89 Absolute Maximum Ratings.
  • Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C Maximum.
  • Maximum Power Dissipation Total Power Dissipation (TA=25°C) 1.2 W.
  • Maximum Voltages and Currents (TA=25°C) VCBO Collector to Base.

📥 Download Datasheet

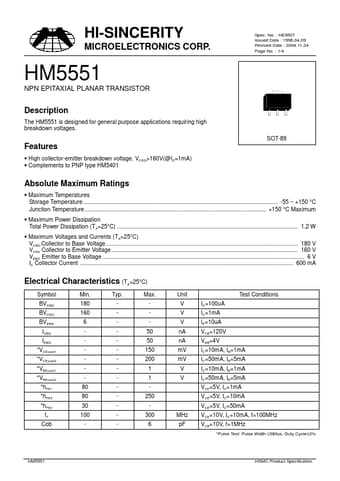

Datasheet preview – HM5551

Datasheet Details

Part number HM5551
Manufacturer Hi-Sincerity Mocroelectronics
File Size 41.08 KB
Description NPN EPITAXIAL PLANAR TRANSISTOR
Datasheet download datasheet HM5551 Datasheet
Additional preview pages of the HM5551 datasheet.

📁 Similar Datasheet

  • HM55 - PRECISION METAL FILM RESISTORS (RCD)
  • HM55 - Shielded Drum Compact Package Low Cost Inductors (TT)
  • HM551 - HM500 Series / Ac/Dc Switching Modules (Artesyn Technologies)
  • HM552 - HM500 Series / Ac/Dc Switching Modules (Artesyn Technologies)
  • HM5565A - One Cell Lithium-ion/Polymer Battery Protection IC (H&M semi)
  • HM55N03D - N-Channel Enhancement Mode Power MOSFET (H&M semi)
  • HM55P06K - P-Channel Enhancement Mode Power MOSFET (H&M Semiconductor)
  • HM50 - HM50 / HM51 Series / Miniature Power Inductors (BI Technologies)
  • HM50-xxx - HM50 / HM51 Series / Miniature Power Inductors (BI Technologies)
  • HM500 - HM500 Series / Ac/Dc Switching Modules (Artesyn Technologies)
Other Datasheets by Hi-Sincerity Mocroelectronics
  • HM5401 - NPN EPITAXIAL PLANAR TRANSISTOR

Full PDF Text Transcription

Click to expand full text
HI-SINCERITY MICROELECTRONICS CORP. HM5551 NPN EPITAXIAL PLANAR TRANSISTOR Spec. No. : HE9507 Issued Date : 1996.04.09 Revised Date : 2004.11.24 Page No. : 1/4 Description The HM5551 is designed for general purpose applications requiring high breakdown voltages. Features • High collector-emitter breakdown voltage. VCEO>160V(@IC=1mA) • Complements to PNP type HM5401 SOT-89 Absolute Maximum Ratings • Maximum Temperatures Storage Temperature ........................................................................................................................... -55 ~ +150 °C Junction Temperature ...................................................................................................................
