HM9772 - Ultra Small Package Load Switch

HM9772 Description

HM9772 HM9772 Nano Current Consumed IQ, Ultra Small Package Load Switch with True Reverse Current Blocking .
The HM9772 is a small, single channel load switch using P-Channel MOSFET for minimum power loss.

HM9772 Features

* Pin-to-Pin: SGM2576, SY6280
* Input Voltage Range ：1.5V~5.5V
* Main switch Ron ：32mΩ (VIN=5.5V Typ. )
* Quiescent current ：0.4uA
* Standby current ：80nA
* Maximum Output current ：2A
* Reverse Current Blocking（RCB）
* Controlled Rise Time：570us at 3.3VIN
* Quick Ou

HM9772 Applications

* with ultra-low quiescent current (0.5uA) and ultra-low standby current (150nA). The HM9772 offers industry leading True Reverse Current Blocking performance. It minimizes reverse current flow in the event that the VOUT pin voltage exceeds the VIN voltage. The device is controlled by external logic

📥 Download Datasheet

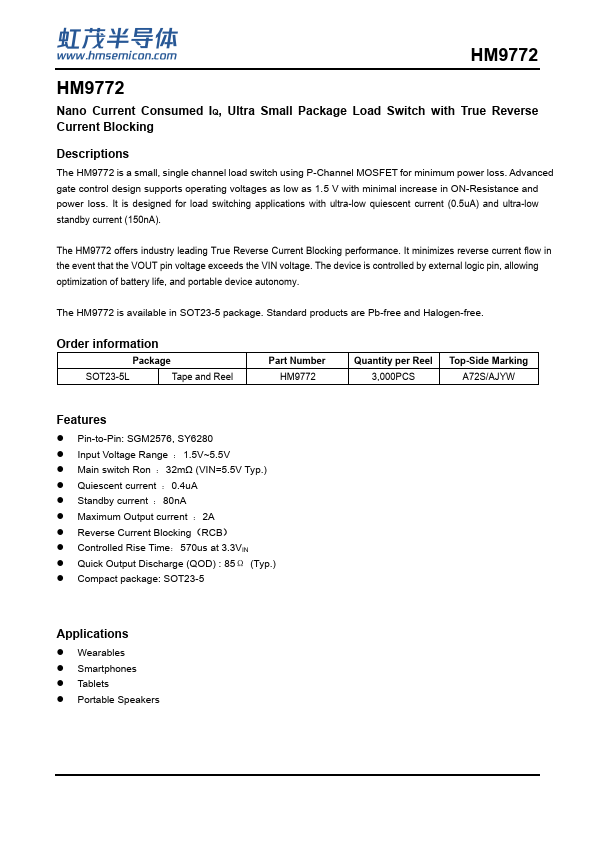

Preview of HM9772 PDF

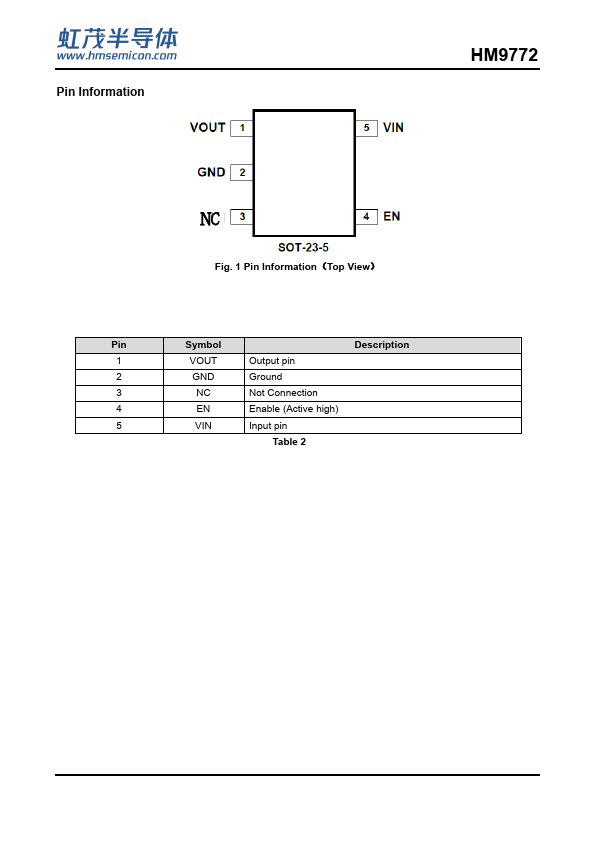

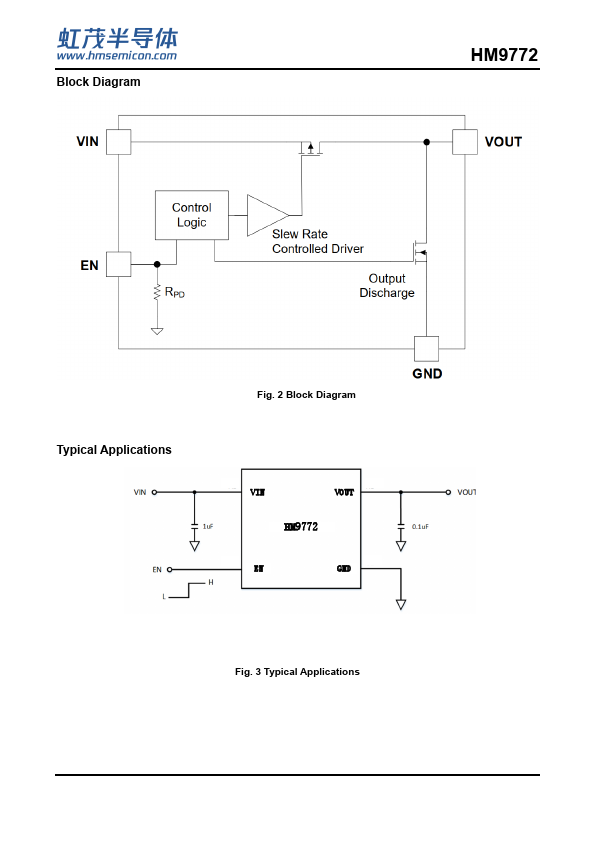

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM9772
Manufacturer
H&M semi
File Size
707.12 KB
Datasheet
HM9772-HMsemi.pdf
Description
Ultra Small Package Load Switch
